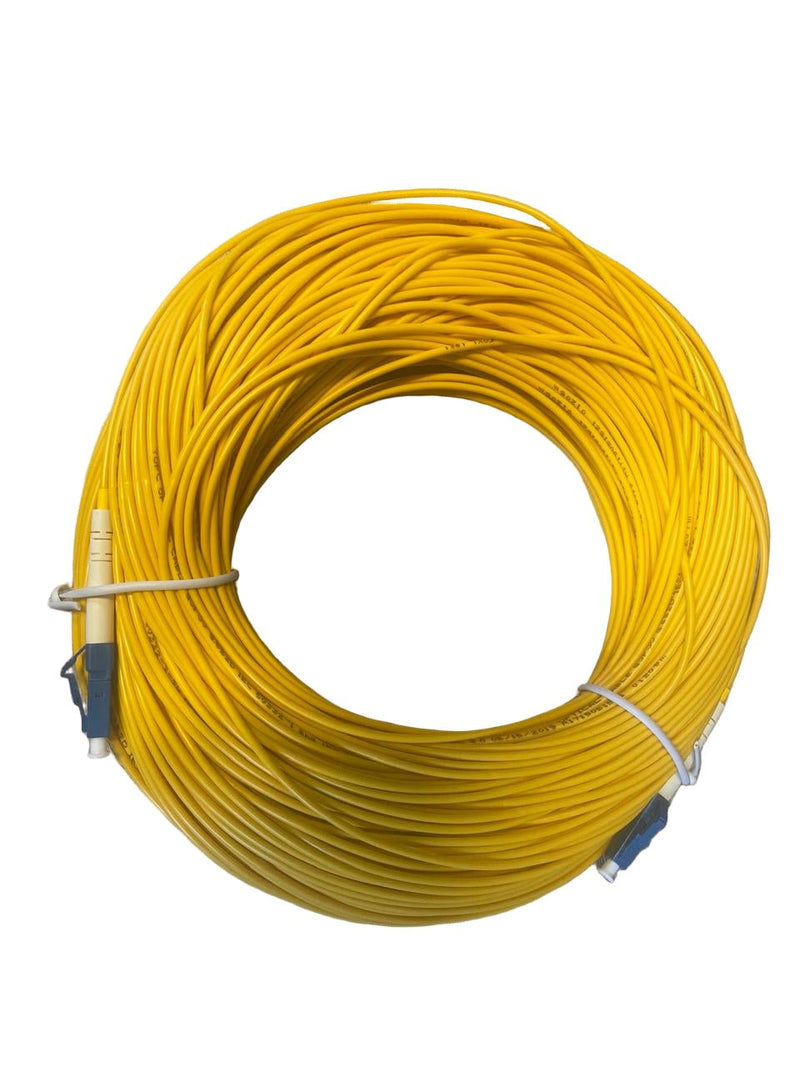

Single Mode 14130943 LC to LC Fiber Optic Cable – 70 Meter – New

This Single Mode LC to LC fiber optic cable is designed for long-distance, high-performance networking across data centers, enterprise backbones, and telecommunications environments. Engineered with OS2 9/125 µm fiber, it supports speeds up to 100Gbps with excellent signal clarity over extended runs.

The LSZH (Low Smoke Zero Halogen) jacket enhances safety by minimizing toxic emissions in the event of a fire. With a low insertion loss of ≤0.30 dB and a strong return loss of ≥50 dB, this cable delivers reliable, stable optical performance where precision matters.

Key Features & Benefits

✔ Single Mode OS2 fiber (9/125 μm)
✔ LC to LC simplex connectors
✔ Supports 1Gbps / 10Gbps / 40Gbps / 100Gbps
✔ LSZH-rated jacket for safer installation environments
✔ Insertion Loss ≤0.30 dB
✔ Return Loss ≥50 dB
✔ Wide wavelength support: 1260–1625 nm

Ideal Uses

✔ Data center backbone links
✔ High-speed enterprise networks
✔ FTTH / telecom applications
✔ Enclosed or safety-sensitive installations

Specifications

✔ Condition: New item
✔ Part Number (P/N): 14130943
✔ Type: Single Mode OS2 Fiber
✔ Connector A: LC Simplex
✔ Connector B: LC Simplex
✔ Fiber Size: 9/125 µm
✔ Cable Length: 70 meters
✔ Cable OD: 2 mm
✔ Material: Polypropylene (PP)
✔ Color: Yellow
✔ Maximum Data Rate: 100Gbps
✔ Insertion Loss: ≤0.30 dB
✔ Return Loss: ≥50 dB
✔ Operating Temperature: -20°C to 60°C
✔ Storage Temperature: -20°C to 60°C
✔ Humidity: 40%–70%
✔ Passive cable design

Warranty

✔ 12-Month Warranty

What’s in the Box

✔ 1 × Single Mode LC to LC Fiber Optic Cable
