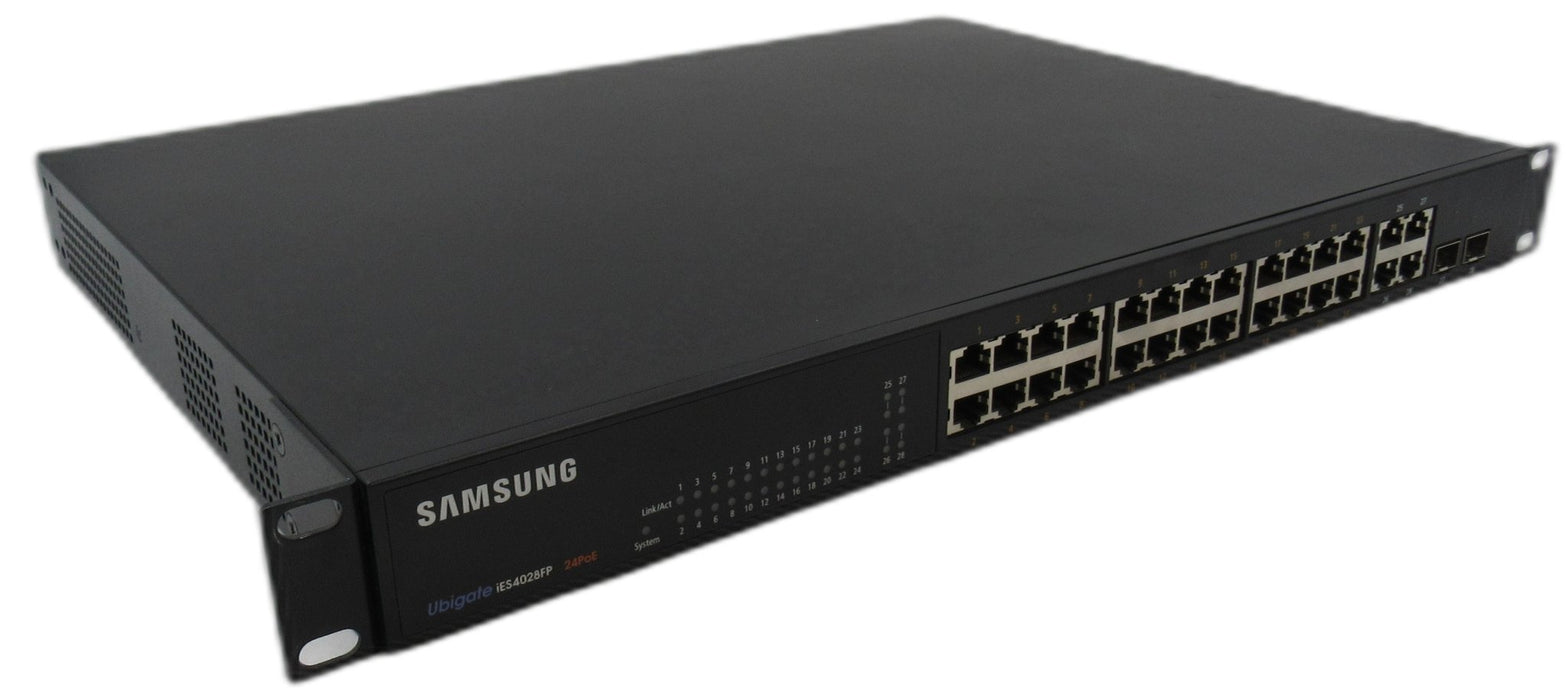

Samsung UbiGate IES4028FP 24 Port Gigabit PoE Switch & VOIP Relay - Refurb
This refurbished Samsung UbiGate IES4028FP is a Layer 2 managed PoE switch designed for high-performance IP video and VoIP applications. It features 24 x 10/100 Ethernet PoE ports, 4 Gigabit combo uplinks, and advanced switching capabilities that minimize latency and prioritize IP video traffic. It supports IP clustering across 36 switches and provides robust management for converged data and voice networks.
The compact design and efficient PoE delivery make it ideal for video surveillance, VoIP deployment, or office LAN consolidation requiring centralized power and management.
✔ Key Features & Benefits
✔ 24 x 10/100 PoE Ethernet ports plus 4 x combo Gigabit uplink ports
✔ VoIP relay and optimized packet prioritization for IP video/voice
✔ Cluster up to 36 units under a single management IP
✔ High-performance 12.8 Gbps switching fabric with 9.5 Mpps throughput
✔ Console port for out-of-band management access
✔ SFP slots compatible with SX, LX, and ZX transceivers
✔ Ideal Uses
✔ Power and connect IP phones in VoIP-enabled offices
✔ Provide PoE to IP surveillance cameras and wireless APs
✔ Support for converged data, voice, and video over a single LAN
✔ Ideal for small businesses deploying managed PoE infrastructure
Specifications
✔ Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
✔ Model: Samsung UbiGate IES4028FP
✔ Layer Type: Layer 2
✔ Ports: 24 x 10/100 BASE-T PoE + 4 x Gigabit combo uplinks
✔ Console Port: 1 x RJ-45 Console
✔ Switching Capacity: 12.8 Gbps
✔ Forwarding Rate: 9.5 Mpps
✔ Network Interface: 10/100/1000 Ethernet + SFP slots
✔ Fiber Support: SX, LX, ZX via SFP (Multi & Single Mode)
✔ PoE Support: Yes
✔ Power Input: 100–240V AC, 50–60Hz
✔ Power Consumption: 30W typical
✔ Stacking / Clustering: Up to 36 switches with single IP
✔ Dimensions: 1.7 x 17.3 x 6.7 in (4.3 x 44 x 17 cm)
✔ Weight: 3.0 kg
✔ Operating Temperature: 0°C to 45°C
✔ Warranty: 3 Month Carry-in Warranty
✔ In the Box: Switch, Power Cable
