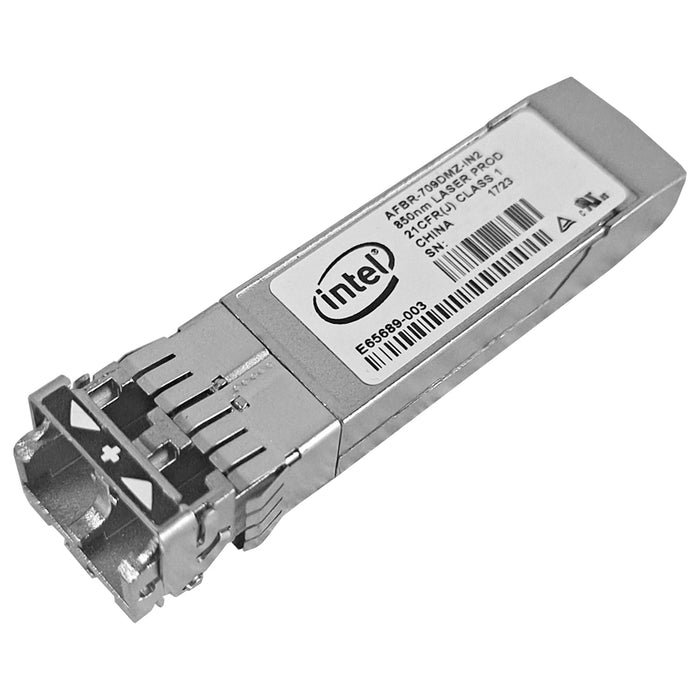

Intel AFBR-709DMZ-IN2 850nm MMF 4.6DB 300M 10GB SFP+ - Refurb

Intel AFBR-709DMZ-IN2 850nm MMF 4.6DB 300M 10GB SFP+ - Refurb

R 375.00 - R 375.00
R 375.00
R 375.00 - R 375.00
R 375.00
Make an offer
Make an offer
Make an offer
We currently have 2 in stock.
by Intel

The Intel AFBR-709DMZ-IN2 is a high-performance 10Gbps SFP+ optical transceiver designed for short-range multi-mode fibre (MMF) networks. Operating over an 850nm wavelength, it delivers reliable data transmission up to 300 meters, supporting a range of applications from 1.25Gbps Gigabit Ethernet to 10.31Gbps 10G Ethernet and STM-64.

This transceiver features a VCSEL laser, PIN photodiode receiver, and double LC connectors. It complies with key industry standards including RoHS, SFF-8431, and FDA/IEC laser safety regulations, offering a robust and secure solution for high-speed optical networking environments.

✔ Key Features & Benefits
✔ Supports 1.25–10.31 Gbps applications including 10G Ethernet and STM-64
✔ Operates at 850nm over multi-mode fibre up to 300m reach
✔ Built-in DDM/DOM for advanced monitoring and diagnostics
✔ Industry-standard SFP+ form factor with double LC connectors
✔ Compliant with CE, RoHS, FDA Class 1 Laser Safety, and SFP MSA

✔ Ideal Uses
✔ 10Gbps short-range fibre uplinks in data centers and enterprise networks
✔ High-performance switch, router, or NIC connectivity over MMF
✔ Applications requiring VCSEL-based optical transmission
✔ Backplane or aggregation links in clustered computing or telecom systems

✔ Specifications
Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional
Transceiver Type: SFP+
Model: AFBR-709DMZ-IN2
Media Type: Multi-Mode Fibre (MMF)
TX / RX Wavelength: 850 nm
Bandwidth: 840–860 nm
Data Rate Supported: 1.25 – 10.31 Gbps
Max Distance: 300 meters (OM3 MMF)
Optical Budget: 4.6 dB
Transmitter Type: VCSEL Laser
Receiver Type: PIN Photodiode
Connectors: Double LC
Tx Power: -6.5 to 1 dBm
Rx Sensitivity: < -11.1 dBm
Receiver Overload: -1 dBm
Dispersion Tolerance: 110 ps/nm
DDM/DOM: Supported
Power Supply: +3.3V single power
Chipset: MAXIM, MINDSPEED, SEMTECH
Compliance: CE, RoHS, Class 1 FDA & IEC60825-1 Laser, SFF-8431, SFP MSA
Operating Temperature: 0°C to 70°C
Warranty: ✔ 1 Month Carry-In Warranty
What's in the Box: Intel AFBR-709DMZ-IN2 SFP+ Module
