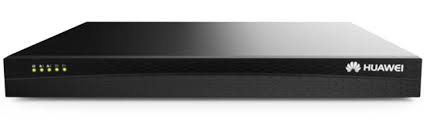

Huawei VCN510-16P 8-Channel Video Surveillance Server with PoE – Demo

The Huawei VCN510-16P is a compact 8-channel video surveillance server designed for small to medium-scale monitoring environments. Equipped with dual drive bays, PoE-enabled network ports, and multiple video outputs, it provides reliable real-time video capture, local recording, and cloud integration. With HDMI, VGA, USB 2.0, and USB 3.0 ports, this server ensures flexible connectivity for displays and peripheral devices.

This demo unit has been fully tested and is operational, ideal for businesses and organizations seeking a ready-to-deploy surveillance solution with cloud-enabled management capabilities.

✔ Key Features & Benefits

✔ 8-Channel Video Access – Supports multiple surveillance feeds simultaneously
✔ PoE-Enabled Ports – Power IP cameras directly via network connections
✔ 2 x Drive Bays – Flexible storage for local video recording
✔ Video Outputs: HDMI & VGA – Direct monitoring capability
✔ USB Ports – 1 × USB 2.0, 1 × USB 3.0 for peripheral connectivity
✔ AC 440W Power Supply – Reliable continuous operation
✔ Web-Based Management – Easy configuration and remote monitoring
✔ Security Protocols – 802.1X, SSH for secure network operation
✔ Rack-Mountable – Standard 19-inch design
✔ Demo Unit – Fully functional, minor cosmetic marks possible

✔ Ideal Uses

✔ Small to medium enterprise surveillance
✔ Cloud-connected video monitoring systems
✔ Remote monitoring and video analytics
✔ Local playback and centralized control

✔ Specifications

✔ Condition: Demo unit – tested and fully functional. Minor cosmetic marks possible
✔ Manufacturer: Huawei
✔ Model: VCN510-16P
✔ Product Type: Video Surveillance Server

Connectivity & Ports

✔ 8 x PoE Network Ports for IP camera connections
✔ 1 x HDMI Output
✔ 1 x VGA Output
✔ 1 x USB 2.0 Port
✔ 1 x USB 3.0 Port
✔ Web-based network management

Storage & Bays

✔ 2 x Drive Bays for HDD/SSD installation
✔ Supports local recording and redundancy

Power

✔ Input Voltage: 100–240V AC
✔ Power Supply: 440W AC
✔ Power Consumption: 440W

Environmental

✔ Operating Temperature: -10°C to 55°C
✔ Storage Temperature: -20°C to 70°C
✔ Operating Humidity: 5% to 95% RH
✔ Storage Humidity: 5% to 95% RH

Physical

✔ Rack-Mountable: 19-inch
✔ Dimensions (HxWxD): 44.45 × 440 × 357.5 mm

Compliance

✔ CE, FCC, RoHS

✔ Warranty

✔ 12 Month Warranty

✔ What’s in the Box

✔ Huawei VCN510-16P Video Surveillance Server
✔ Power Cable
