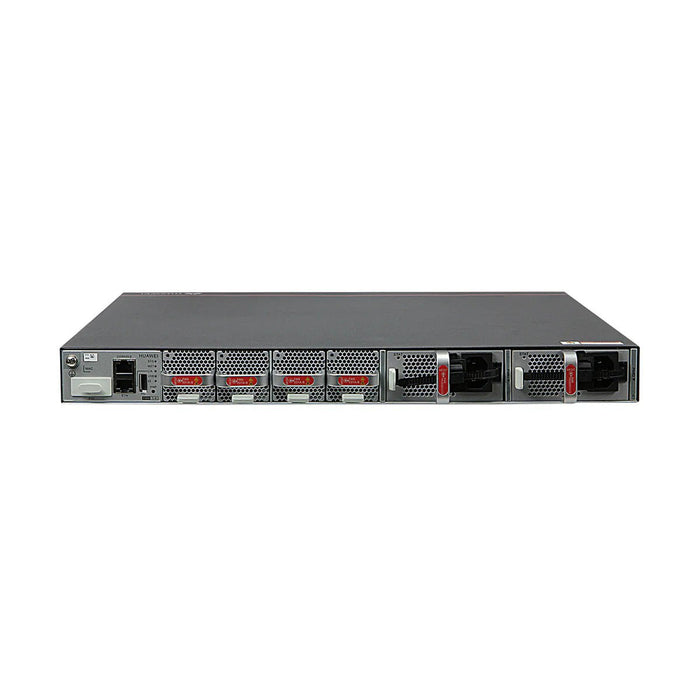

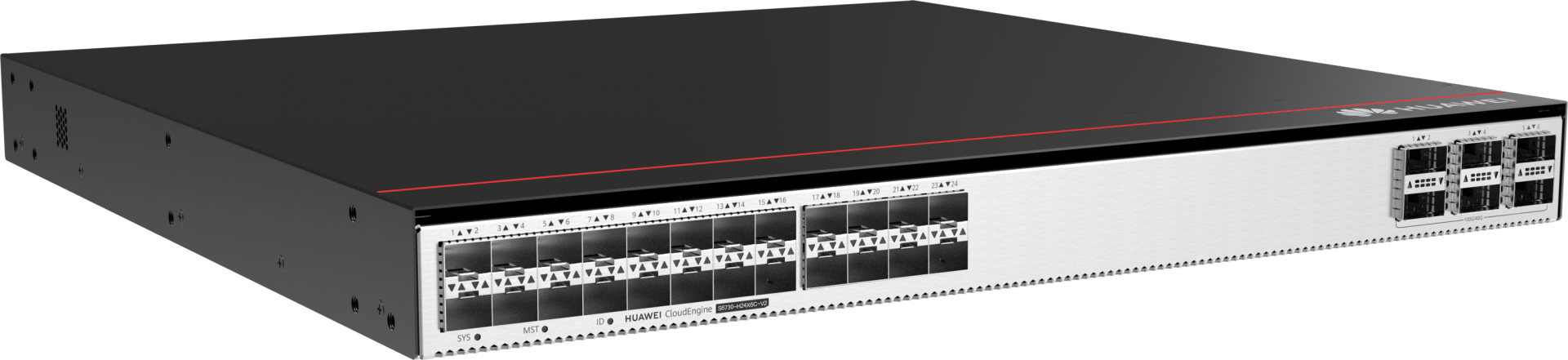

Huawei S6730-S24X6Q 24 Port 10G 6 Port 40G Layer 3 Ethernet Switch – Refurb

The Huawei S6730-S24X6Q is a 1U Layer 3 Ethernet switch equipped with 24 fixed 10G SFP+ ports and 6 fixed 40G QSFP+ uplink ports. Built for high-density aggregation and core switching in enterprise networks, it offers reliable Layer 3 routing performance with strong multicast, QoS, and network security features.

With a switching capacity of 2.4 Tbps and forwarding performance up to 480 Mpps, this unit supports robust IPv4 and IPv6 routing, VLAN segmentation, and network protection mechanisms for demanding environments.

✔ Key Features & Benefits

✔ 24 x 10G SFP+ ports for high-speed fiber connectivity
✔ 6 x 40G QSFP+ uplink ports for backbone aggregation
✔ Switching capacity of 2.4 Tbps and forwarding rate of 480 Mpps
✔ Supports static routing, RIP, OSPF, IS-IS, and BGP protocols
✔ Up to 64K MAC address entries and 4K VLANs
✔ QoS features including rate limiting, queuing, and packet re-marking
✔ Network protection with STP, MSTP, ERPS, and BFD
✔ Layer 2–Layer 4 ACL filtering and port security

✔ Ideal Uses

✔ Aggregation layer switch in enterprise campus networks
✔ Core switch in medium-sized data centers
✔ Backbone routing and VLAN segmentation in fibre-based environments
✔ High-throughput switching for IPv4 and IPv6 network infrastructures

✔ Specifications

✔ Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
✔ Brand: Huawei
✔ Model: S6730-S24X6Q
✔ Form Factor: 1U Rackmount
✔ Ports:
 • 24 x 10G SFP+
 • 6 x 40G QSFP+
✔ Switching Capacity: 2.4 Tbps
✔ Forwarding Performance: 480 Mpps
✔ MAC Address Table: 64K entries
✔ VLAN Support: 4,000 VLANs
✔ IPv4 Routing: Static, RIP v1/v2, OSPF, IS-IS, BGP
✔ IPv6 Routing: Static, RIPng, OSPFv3, IS-ISv6, BGP4+
✔ Multicast Support: IGMP v1/v2/v3, PIM-SM, PIM-DM
✔ QoS Features:
 • Rate limiting (inbound/outbound)
 • Traffic classification and policing
 • Queue scheduling (SP, DRR, SP+DRR)
✔ ACLs & Security:
 • L2–L4 filtering (MAC, IP, ports, protocol)
 • Port isolation, sticky MAC, MAC binding
 • IEEE 802.1X authentication
✔ Reliability: STP, RSTP, MSTP, ERPS, BFD
✔ Power Input:
 • AC: 100V–240V, 50/60Hz
 • DC: –48V to –60V
✔ Power Consumption (Max): 225W
✔ Power Consumption (Min): 88W
✔ Operating Temperature: –5°C to 45°C (up to 1800m altitude)
✔ Storage Temperature: –40°C to 70°C
✔ Humidity: 5% to 95% (non-condensing)
✔ Altitude Range: Up to 5000m
✔ Dimensions: 442 x 420 x 43.6 mm
✔ Noise Level: 65 dB(A)
✔ Fans: 4 (Pluggable, with speed control)
✔ Warranty: 3 Month Carry-in Warranty
✔ What's in the Box: Switch
