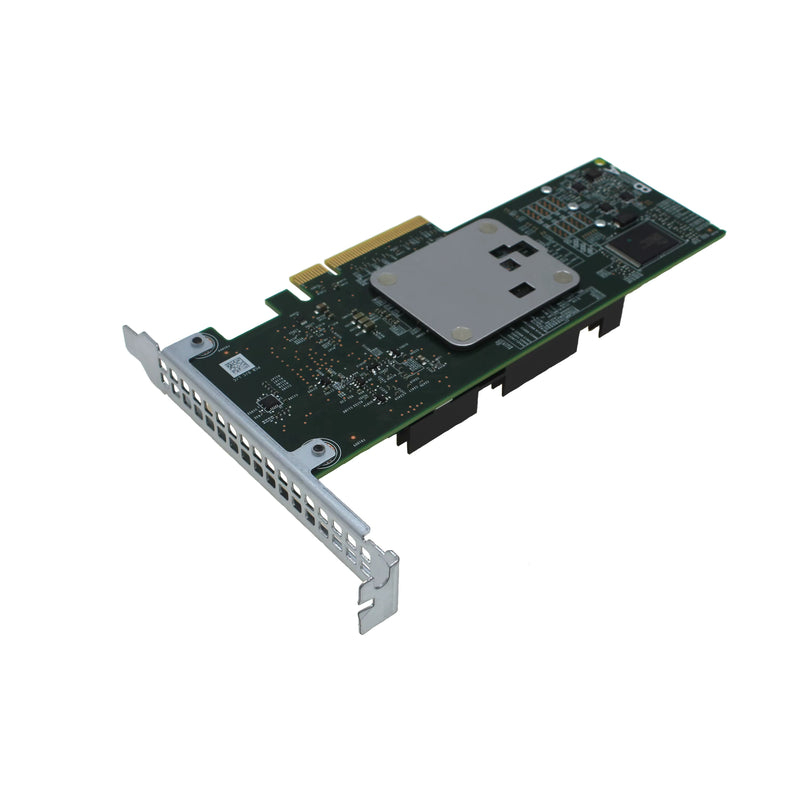

Dell PERC 06H1G0 H330 12Gb/s SAS PCIe RAID Controller – Refurb

The Dell PERC H330 is an entry-level RAID and non-RAID storage controller designed for compatible Dell PowerEdge servers and workstations. It supports both SAS and SATA HDDs and SSDs, as well as pass-through drive configurations, providing a flexible storage solution for compatible systems.

Featuring the LSI SAS3008 controller and an 8-lane PCI Express 3.0 interface, the PERC H330 provides data transfer rates of up to 12Gb/s per port. It supports RAID 0, RAID 1, RAID 5, RAID 10, and RAID 50, together with features such as hot-plug support, global hot spares, online capacity expansion, and online RAID level migration.

────────────────────────────────────────────────────────

✔ Key Features & Benefits

✔ Dell PERC H330 Controller: Entry-level RAID and non-RAID storage solution for compatible Dell servers and workstations.

✔ 12Gb/s SAS Connectivity: Supports high-speed connectivity for compatible SAS and SATA storage devices.

✔ PCI Express 3.0 x8 Interface: Provides high-bandwidth connectivity between the RAID controller and host system.

✔ Multiple RAID Levels: Supports RAID 0, RAID 1, RAID 5, RAID 10, and RAID 50.

✔ LSI SAS3008 Controller: Provides the underlying SAS storage controller functionality.

✔ Pass-Through Support: Supports non-RAID drive configurations for compatible storage environments.

────────────────────────────────────────────────────────

✔ Ideal Uses

✔ Server Storage: Suitable for compatible Dell PowerEdge server storage configurations.

✔ RAID Storage: Suitable for creating supported RAID arrays using compatible SAS or SATA drives.

✔ Workstation Storage: Suitable for compatible professional workstation environments.

✔ Storage Expansion: Provides additional SAS/SATA storage controller functionality for compatible systems.

────────────────────────────────────────────────────────

✔ Specifications

✔ Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.

✔ Manufacturer: Dell

✔ Model: PERC H330

✔ Part Number: 06H1G0

✔ Product Type: SAS PCIe RAID Controller

Controller

✔ SAS Controller: LSI SAS3008

✔ Host Bus Type: PCI Express 3.0 x8

✔ Data Transfer Rate: Up to 12Gb/s per port

Connectors

✔ Internal Connectors: 2 × x4 internal Mini-SAS HD SFF-8644

Storage Support

✔ Non-RAID: Up to 128 physical devices

✔ RAID 0: Up to 32 drives per volume

✔ RAID 1: 2 drives per volume plus hot spare

✔ RAID 5: Up to 32 drives per volume

✔ RAID 10: Up to 32 drives per volume

✔ RAID 50: Up to 32 drives per volume

✔ Drive Support: SAS HDDs, SAS SSDs, SATA HDDs, and SATA SSDs

RAID Features

✔ Selectable logical drive as boot drive

✔ Consistency check

✔ TRIM/UNMAP support for SAS/SATA SSDs

✔ Native Command Queuing

✔ Staggered spin-up for SATA drives

✔ Hot-plug support

✔ Global hot-spare support

✔ Online Capacity Expansion (OCE)

✔ Online RAID Level Migration (RLM)

✔ Automatic hot-spare rebuild

✔ Automatic resume during array rebuild

✔ Greater than 2TB logical drive support

✔ S.M.A.R.T. support

Physical

✔ Dimensions: 167.6mm × 64.4mm

✔ Card Type: 3.3V add-in card

✔ Bracket: Full-length, low-profile

✔ LED Indicators: Internal activity/fault indicators per x4 port

Management

✔ Management: CTRL-R, Dell OpenManage Storage Services, PERC CLI, UEFI/HII, and CEM

────────────────────────────────────────────────────────

✔ Warranty

✔ 12 Month Warranty

────────────────────────────────────────────────────────

✔ What's in the Box

✔ Dell PERC 06H1G0 H330 12Gb/s SAS PCIe RAID Controller
