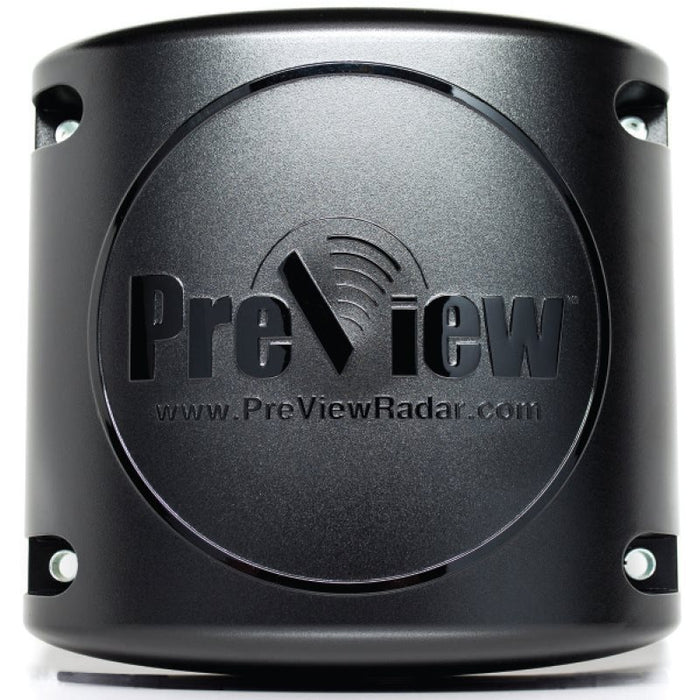

Preview XPV4232A 5.8GHz Pulsed RF Sensor System – Refurb

The Preview XPV4232A is a refurbished pulsed RF sensor designed for vehicle detection and proximity applications. Operating at 5.8GHz, it offers reliable performance in harsh environments with sealed electronics, rugged polycarbonate housing, and compliance with FCC Part 15.249 regulations.

With a programmable detection range of 10 to 32 feet, multiple warning zones, and SAE J1939 CAN bus communication, this sensor integrates seamlessly into heavy-duty vehicles, industrial equipment, and safety monitoring systems.

✔ Key Features & Benefits

✔ Pulsed RF transmitter at 5.8GHz for accurate proximity detection
✔ Programmable detection range from 10 to 32 feet with 5 warning zones
✔ Sealed electronics for dust and moisture resistance in tough conditions
✔ SAE J1939 CAN bus communication for reliable integration
✔ Rugged housing and vibration/shock resistance for demanding environments

✔ Ideal Uses

✔ Heavy equipment proximity sensing and collision avoidance
✔ Vehicle-mounted safety systems for industrial or mining operations
✔ Fleet management and monitoring applications requiring CAN integration
✔ Harsh outdoor environments needing rugged detection equipment

✔ Specifications

✔ Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
✔ Brand / Model: Preview XPV4232A
✔ Transmitter: Pulsed RF at 5.8GHz (FCC Part 15.249 compliant)
✔ Connector: Deutsch DT06-08SA-E008
✔ Sealing: Dust and moisture sealed electronics
✔ Housing Material: Polycarbonate radome
✔ Dimensions: 7.56”H x 7.35”W x 2.39”D (19.2 x 18.7 x 6.0 cm)
✔ Weight: 2.2 lb. (1.0 kg)
✔ Operating Temperature: -40°C to +85°C
✔ Vibration Resistance: 25G RMS (all axes)
✔ Shock Resistance: 25G (all axes)
✔ Mounting: Four 8.3mm holes on 6.50” horizontal and 5.00” vertical centers, includes ¼-20 screws (50 in-lbs torque)
✔ Input Voltage: 9–33VDC (over-voltage protected to 150V)
✔ Input Current: 0.2A max, 1A inrush current limit
✔ Polarity Protection: Negative ground, protected to 150V
✔ Auxiliary Output: +150V tolerant, active low, 1A max sink current
✔ Maximum Range: 32 feet (10m)
✔ Programmable Range: 10–32 feet (3–10m)
✔ Warning Zones: 5 zones within programmed range
✔ Minimum Resolution: 1 foot
✔ Communication: CAN 2.0B physical layer, SAE J1939 extended protocol, 250 KB/s, 70 ms update rate
✔ Regulatory Compliance: FCC Part 15.249 (5725–5875MHz), FCC ID: OXZPV2000A
✔ Warranty: 3 Month Carry-in Warranty
✔ What's in the Box: Preview XPV4232A Pulsed RF Sensor
