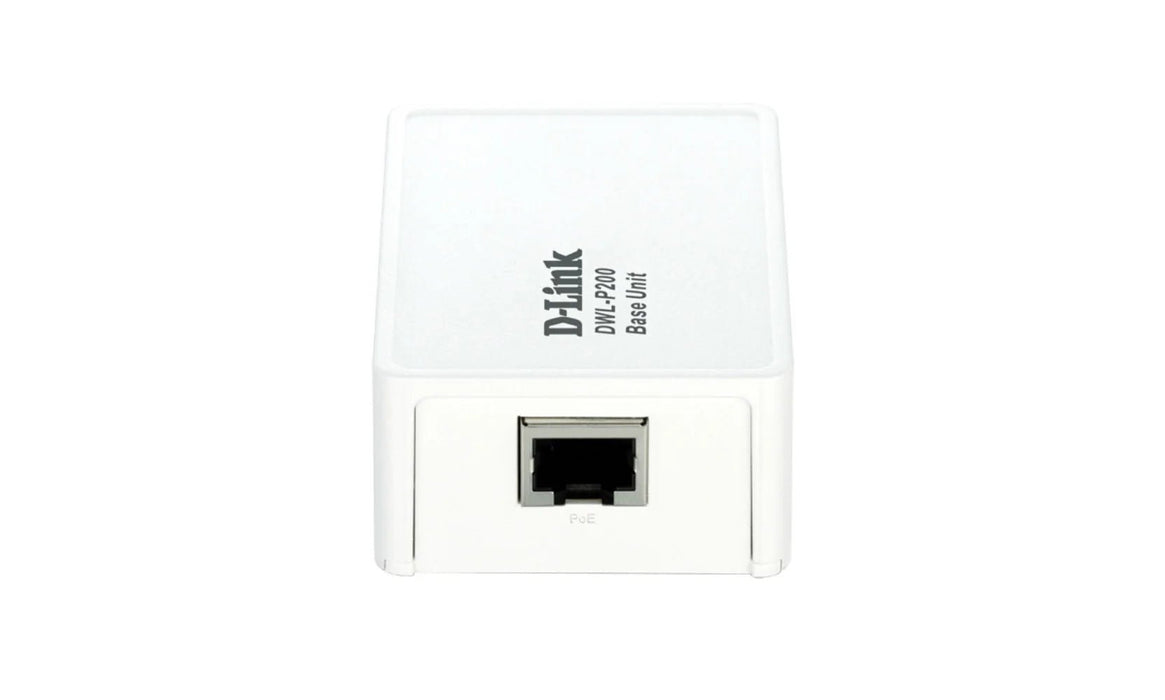

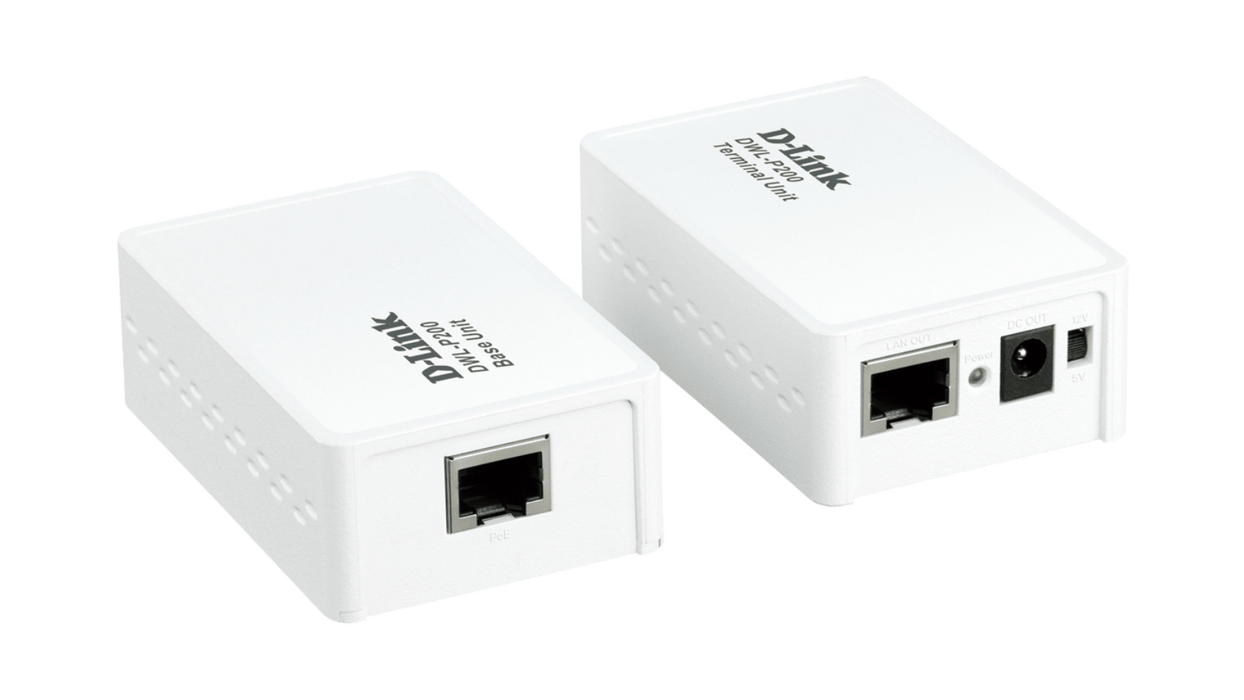

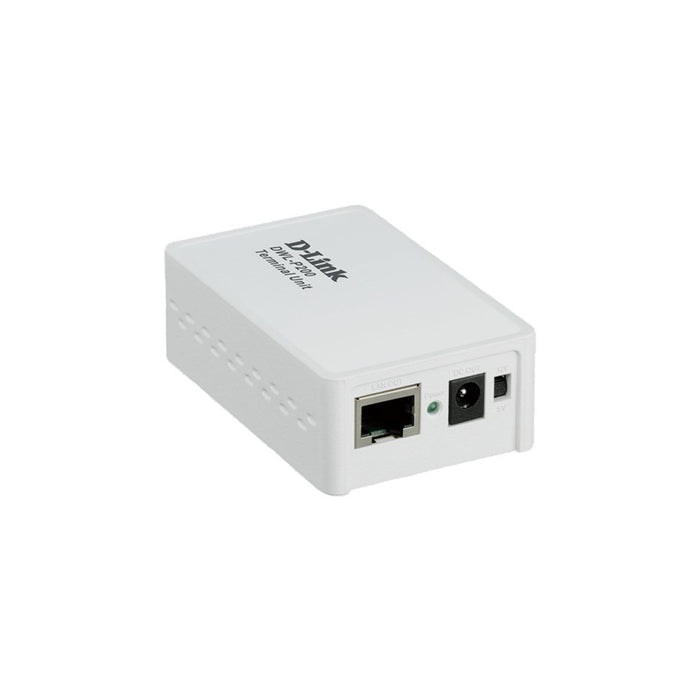

D-Link DWL-P200 Power Over Ethernet Adapter Kit – Open Box

The D-Link DWL-P200 PoE Adapter Kit enables both data and power to be transmitted over a single Ethernet cable, simplifying installations of surveillance cameras, wireless access points, and other network devices in hard-to-reach areas. With selectable 5VDC or 12VDC output, it offers flexibility for various powered devices while eliminating the need for separate power cabling.

✔ Key Features & Benefits
✔ Supplies both power and data over a single Ethernet cable for easy installation
✔ Selectable 5VDC or 12VDC output via DIP switch for device compatibility
✔ Ideal for wireless LAN devices, network cameras, and remote installations
✔ Includes base and terminal units for complete PoE setup
✔ Compact design with reliable FCC and CE safety certifications

✔ Ideal Uses
✔ Powering wireless access points and bridges in ceilings or rooftops
✔ Supplying PoE to surveillance cameras in remote locations
✔ Extending network devices where power outlets are unavailable
✔ Simplifying cable management in offices and industrial environments

✔ Specifications
✔ Condition: New device with no signs of previous use. Device has been extensively tested and is 100% functional.
✔ Brand: D-Link
✔ Model: DWL-P200
✔ Product Type: Power Over Ethernet Adapter Kit
✔ Included: 1 x Base Unit, 1 x Terminal Unit
✔ Input Voltage: 48VDC, 400mA
✔ Output Voltage: 5VDC or 12VDC (DIP switch selectable)
✔ Data Rate: 10/100Mbps
✔ Connector Type: RJ-45 (TIA/EIA 568 Cat 5)
✔ Power Pin Assignment: Data – Pins 1, 2, 3, 6 / Power – Pins 4, 5, 7, 8
✔ Dimensions (Base & Terminal): 81 x 52 x 28 mm each
✔ Operating Temperature: 0°C to 40°C
✔ Storage Temperature: -40°C to 70°C
✔ Operating Humidity: 10% to 80% RH
✔ Storage Humidity: 5% to 90% RH
✔ Certifications: FCC Part 15 Class B, CE Class B, CSA International
✔ Warranty: 6 Month Carry-in Warranty
✔ What's in the Box: Base Unit, Terminal Unit
