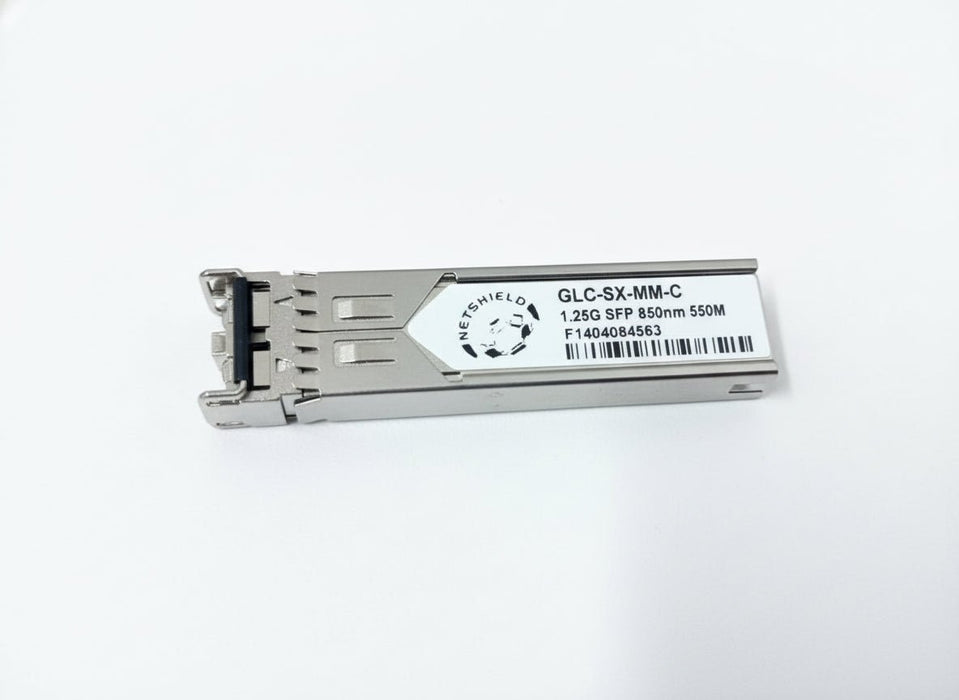

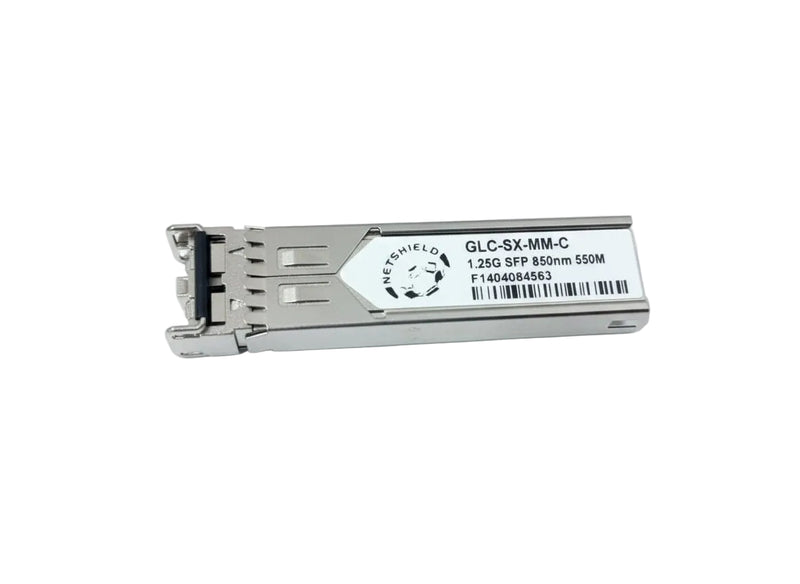

Netshield GLC-SX-MM-C F1404084563 850nm 1.25Gbps SFP Transceiver Module – Refurb

The Netshield GLC-SX-MM-C SFP transceiver module is a reliable, high-performance optical solution designed for Gigabit Ethernet and Fiber Channel networks. Operating over multi-mode fiber (MMF) with a wavelength of 850 nm, this module delivers stable 1.25 Gbps connectivity across distances up to 550 meters. Its compact SFP form factor and full compliance with SFP MSA standards make it ideal for a wide range of networking equipment, including switches, routers, and fiber-optic interfaces.

Built with a VCSEL laser transmitter and PIN photodiode receiver, this module ensures consistent data transmission while supporting Digital Diagnostic Monitoring (DDM/DOM) for real-time performance monitoring. Refurbished and thoroughly tested for functionality, the Netshield GLC-SX-MM-C offers a cost-effective and dependable alternative for network expansions, maintenance, or replacement in enterprise and data center environments.

✔ Key Features & Benefits
✔ Multi-Mode Fiber (MMF) SFP transceiver for high-speed network connectivity
✔ 850 nm wavelength with 1.25 Gbps data rate support
✔ Supports Gigabit Ethernet (1.25 Gbps) and 1G Fiber Channel (1.0625 Gbps)
✔ DDM/DOM support for monitoring transceiver performance
✔ Maximum distance up to 550 meters over MMF
✔ Compact SFP form factor, hot-swappable for easy installation
✔ CE, FDA Class 1, IEC60825-1, INF-8074i, and RoHS compliant

✔ Ideal Uses
✔ Gigabit Ethernet network deployments
✔ Fiber Channel storage area networks (SAN)
✔ Data center and enterprise fiber-optic connectivity
✔ Network maintenance, upgrades, or expansion projects

✔ Specifications
✔ Condition: Refurbished device, fully tested and functional. Minor cosmetic marks may be present.
✔ Model: GLC-SX-MM-C
✔ Netshield Part Number: F1404084563
✔ Transceiver Type: SFP
✔ Media Type: Multi-Mode Fiber (MMF)
✔ Wavelength (TX/RX): 850 nm
✔ Distance: Up to 550 m
✔ Supported Data Rate: 1.063–1.25 Gbps
✔ Minimum Optical Budget: 7.5 dB
✔ Connector Type: Double LC
✔ Transmitter Type: VCSEL Laser
✔ Receiver Type: PIN photodiode
✔ Tx/Rx Wavelength Bandwidth: 20 nm (840–860 nm)
✔ Minimum Transmitting Power: –9.5 dBm
✔ Maximum Transmitting Power: 3 dBm
✔ Receiver Sensitivity: –17 dBm
✔ Receiver Overload: –3 dBm
✔ Dispersion: 110 ps/nm
✔ Power Supply: +3.3V single power supply
✔ Chipset: MAXIM, MINDSPEED, SEMTECH
✔ Compliance: CE, Class 1 FDA, IEC60825-1, INF-8074i, RoHS

✔ Warranty
✔ 12 Month Warranty

✔ What’s in the Box
✔ 1 × Netshield GLC-SX-MM-C 850nm 1.25G SFP Transceiver Module
