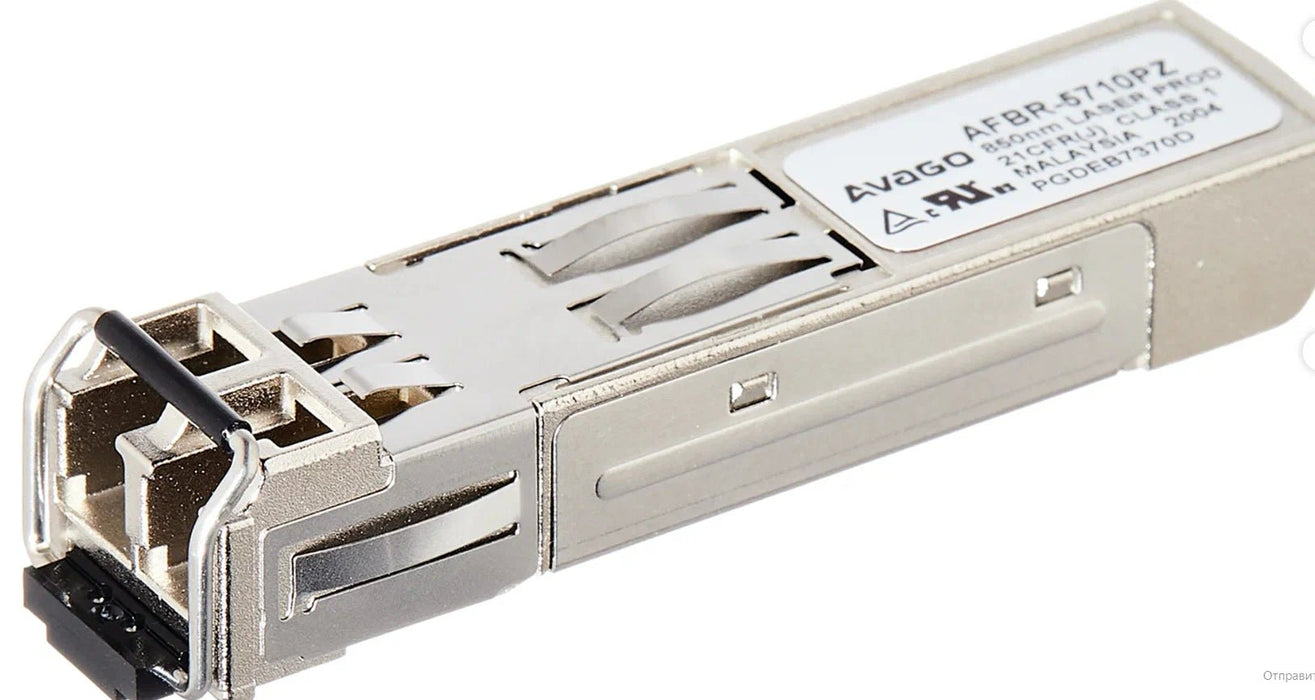

Avago AFBR-5710PZ 850nm SFP Transceiver Module – Refurb

The Avago AFBR-5710PZ SFP transceiver is a compact and reliable solution for Gigabit Ethernet and Fibre Channel applications. Operating at 850nm, it supports data rates up to 1.25Gbps over multimode fiber and provides distances up to 550m depending on fiber type.

Designed with a hot-pluggable SFP footprint and dual-LC connectors, it integrates seamlessly into enterprise networking equipment. Fully compliant with IEEE 802.3z 1000Base-SX standards, this transceiver offers dependable performance and RoHS compliance for environmentally friendly deployments.

✔ Key Features & Benefits

✔ Gigabit Ethernet & Fibre Channel Support – Provides stable 1.25Gbps connectivity for short-range networks.
✔ Flexible Fiber Distances – Up to 220m over 62.5/125µm MMF and 550m over 50/125µm MMF.
✔ Compact SFP Form Factor – Hot-pluggable design for easy installation and upgrades.
✔ Dual-LC Connector Interface – Ensures secure fiber connections and reliable data transfer.
✔ Wide Operating Range – Available in standard (0°C to 70°C) and industrial (-40°C to 85°C) versions for versatile deployments.

✔ Ideal Uses

✔ Short-range enterprise and campus LAN fiber uplinks.
✔ Data centers requiring low-cost Gigabit optical connectivity.
✔ Fibre Channel applications supporting storage and SAN environments.
✔ Industrial networks needing reliable optical connectivity across varying conditions.

✔ Specifications

✔ Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
✔ Brand: Avago
✔ Model / Part Number: AFBR-5710PZ
✔ Type of Product: SFP Transceiver Module
✔ Form Factor: SFP (mini-GBIC)
✔ Speed / Data Rate: Up to 1.25Gbps
✔ Wavelength: 850nm
✔ Cable Type: MMF (Multi-Mode Fiber)
✔ Connector: Dual-LC
✔ Distance: Up to 220m (62.5/125µm MMF) / 550m (50/125µm MMF)
✔ DDM/DOM: Not Supported
✔ Power Supply: +3.3V
✔ Typical Power Consumption: ≤130mA (TX) / ≤110mA (RX)
✔ Transmit Power: -9 to -3 dBm
✔ Receiver Sensitivity: < -17 dBm
✔ Receiver Overload: -3 dBm
✔ Extinction Ratio: >10 dB
✔ Operating Temperature (Standard): 0°C to +70°C
✔ Operating Temperature (Industrial): -40°C to +85°C
✔ Compliance: IEEE 802.3z 1000Base-SX, RoHS, IEC60825-1 Class 1 Laser Safety
✔ Warranty: 3 Month Carry-in Warranty
✔ In the Box: 1 x Avago AFBR-5710PZ SFP Transceiver Module
