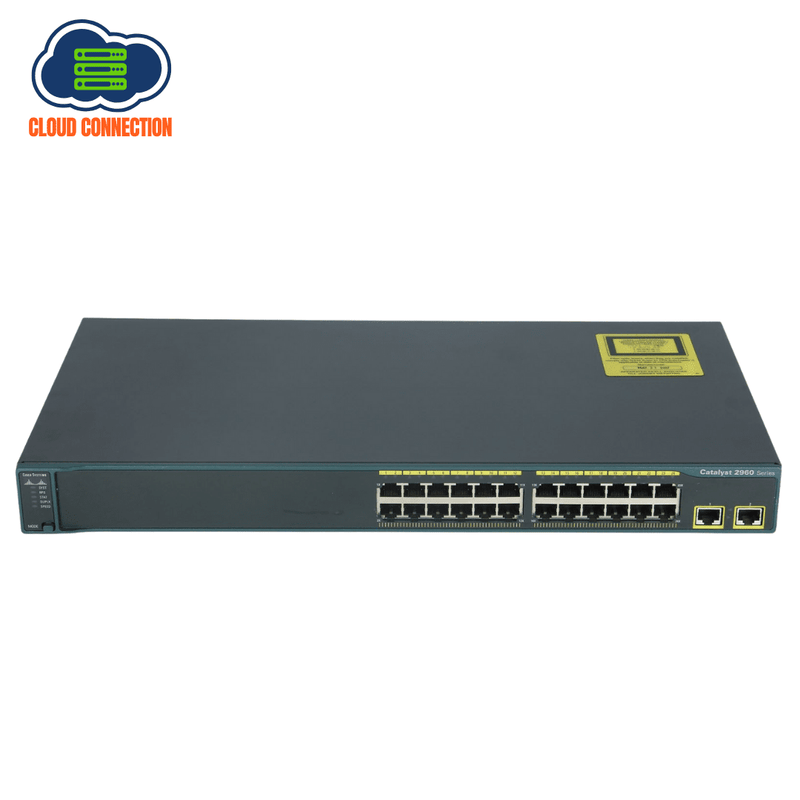

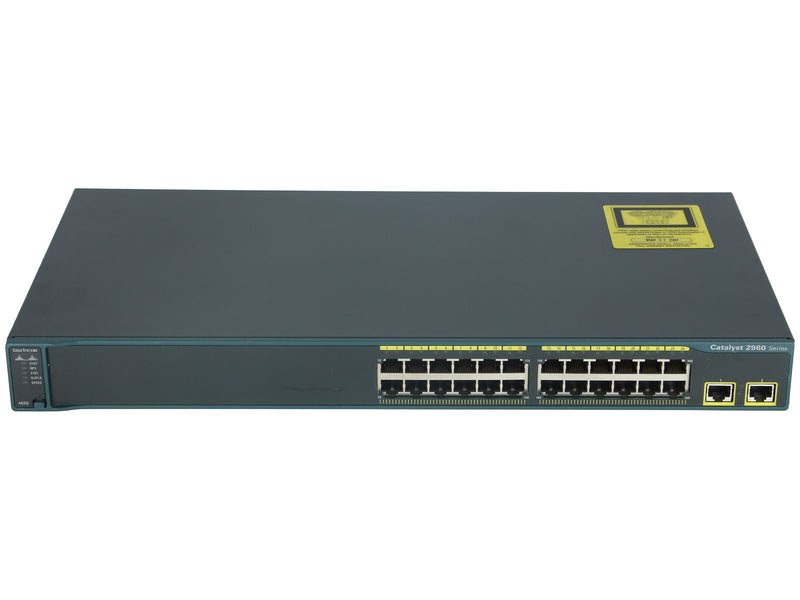

Cisco WS-C2960-24TT-L 24 Ethernet 10/100 ports and 2 fixed Ethernet 10/100/1000 uplink ports - Refurb

The Cisco WS-C2960-24TT-L delivers affordable, secure, and reliable connectivity in compact branch offices, classrooms, or remote work environments. Designed with 24 10/100 Fast Ethernet ports and 2 dual-purpose uplinks (RJ-45 or SFP), this switch ensures easy integration with existing networks and supports essential LAN services without the overhead of complex configurations.

With a switching fabric of 16 Gbps and forwarding rate of 6.5 Mpps, the 2960-24TT-L is ideal for small networks requiring stable Layer 2 connectivity with basic traffic prioritization and VLAN segmentation. It also supports jumbo frames and Layer 2 intelligent services, making it a practical upgrade from unmanaged switches for users wanting visibility and control over traffic flows.

✔ Key Features & Benefits
✔ 24 x Fast Ethernet Ports — Cost-effective for connecting printers, desktops, and VoIP phones in small to medium environments.
✔ 2 x Dual-Purpose Uplinks — Supports either copper (RJ-45) or fiber (SFP) for greater deployment flexibility.
✔ LAN Base IOS — Allows configuration of VLANs, basic QoS, and static network routes.
✔ Low Power Consumption — Maximum of just 0.05 kVA, making it efficient for continuous operation.
✔ RPS Support — Compatible with Cisco RPS 2300 for optional redundant power protection.
✔ Quiet Operation — Generates only 40 dBA, suitable for office or classroom installations.

✔ Ideal Uses
✔ Office expansion switch for connecting new devices without investing in gigabit hardware.
✔ Network backbone for printers, shared drives, or security cameras in retail or hospitality environments.
✔ Educational institutions deploying VLANs to separate administrative and student networks.
✔ Managed Layer 2 switch upgrade for environments moving away from unmanaged plug-and-play setups.

Specifications

✔ Condition:
Used item with visible signs of previous use, including scuffs, scratches, or minor cracks. Device has been tested and is fully functional. These cosmetic imperfections do not affect the performance of the items.

✔ Manufacturer & Model:
Cisco WS-C2960-24TT-L

✔ Form Factor:
1U Rackmount Switch – Fixed Configuration

✔ Switching Capacity & Throughput:
Switching Fabric: 16 Gbps
Forwarding Rate: 6.5 Mpps (64-byte packets)

✔ Ethernet Ports:
24 x 10/100 Ethernet Ports
2 x Dual-Purpose Uplink Ports (10/100/1000 RJ-45 or SFP)

✔ Memory & Performance:
DRAM: 64 MB
Flash Memory: 32 MB
MAC Address Table: Configurable up to 8000 addresses
Jumbo Frame Support: 9018 bytes
IGMP Groups: Up to 255

✔ Power & Redundancy:
Internal PSU: 100–240V AC, 50–60Hz
Power Rating: 0.05 kVA
Optional RPS Connector: Compatible with Cisco RPS 2300
DC Input: +12V at 5A

✔ Environmental & Physical:
Dimensions: 1.73 x 17.5 x 9.3 in (4.4 x 44.5 x 23.6 cm)
Weight: 3.6 kg
Operating Temp: -5°C to 45°C (up to 5000 ft)
Humidity: 10%–95%, non-condensing
MTBF: 407,707 hours
Acoustic Noise: 40 dBA

✔ Management & Standards:
Software Feature Set: LAN Base
Management: SNMP, RMON, Cisco CLI
Compliance: IEEE 802.1D, 802.1Q, 802.1p, 802.3af, 802.3u, 802.3x, 802.3z, RMON, SNMP v1/v2/v3

✔ Warranty:
7-Day Return & Swop or Refund Policy only. No Warranty is applicable.

✔ What’s in the Box:
Cisco WS-C2960-24TT-L Switch, Power Cable
