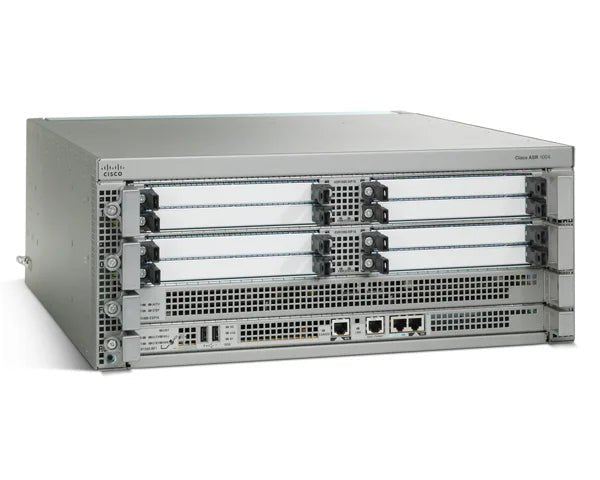

Cisco ASR 1004 Aggregation Services Router – Refurb

Cisco ASR 1004 Aggregation Services Router – Refurb

Save R 7,500.00 Save R 7,500.00
R 20,000.00
R 20,000.00 - R 20,000.00
R 20,000.00
R 12,500.00
R 12,500.00 - R 12,500.00
R 12,500.00
Make an offer
Make an offer
Make an offer
We currently have 2 in stock.
by Cisco

The Cisco ASR 1004 is a high-performance 4U edge router designed for scalable enterprise WAN aggregation and service provider networks. Supporting up to 40 Gbps throughput, the ASR1004 features 8 integrated Shared Port Adapter (SPA) slots and 2 SIP bays, providing modular flexibility to expand and adapt to growing traffic demands.

With software-based redundancy, integrated hardware encryption (via supported ESP modules), and NEBS-compliant design, the ASR1004 delivers carrier-grade reliability in a compact chassis. This unit is ideal for secure, high-throughput routing in mission-critical infrastructures.

✔ Key Features & Benefits

✔ 8 built-in SPA slots for modular WAN/LAN interface configuration
✔ Supports up to 2 SIP interface processors for high-density port scaling
✔ Flexible performance scalability from 10 Gbps to 40 Gbps
✔ Software-based redundancy for improved high-availability routing
✔ Front-to-back airflow cooling ensures optimal thermal performance
✔ NEBS-compliant chassis suitable for telecom-grade installations
✔ Compatible with Cisco IOS XE for advanced routing and automation

✔ Ideal Uses

✔ Enterprise WAN core or edge routing for multi-branch connectivity
✔ ISP and carrier-grade network edge aggregation
✔ Secure high-throughput data transit for finance or public sectors
✔ Modular deployment in telecom-grade colocation or data centers

✔ Specifications

✔ Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.

✔ Model: Cisco ASR1004
✔ SPA Slots: 8 x Integrated Shared Port Adapter (SPA) Slots
✔ SIP Bays: 2 x SIP Interface Processor Bays
✔ ESP Slots: 1 x Embedded Services Processor Slot
✔ Route Processor Slots: 1
✔ Throughput Scalability: 10 Gbps – 40 Gbps (based on installed ESP)
✔ Redundancy: Software-based
✔ Memory (Default): 4GB DRAM (RP1) / 8GB DRAM (RP2)
✔ Power Consumption:
  ● Max DC: 1020W
  ● Max AC: 960W
✔ Cooling: Front-to-back airflow
✔ Rack Mountable: Yes – 4U (19-inch rack)
✔ Built-in Ports: None – all ports via installed SPAs
✔ External USB: 1 x USB for external flash
✔ Operating Temperature: 0°C to 40°C
✔ Humidity Range: 10% to 85% (operating)
✔ Altitude: –500 to 10,000 ft
✔ Dimensions: 177.8 mm (H) × 437.4 mm (W) × 461.0 mm (D)
✔ Weight: 31.16 kg (fully populated)
✔ Compliance: NEBS, FCC Class A, EN55022/24, UL60950-1

✔ Warranty: 3 Month Carry-in Warranty
✔ What's in the Box: Cisco ASR1004 Chassis Only (No ESP, SIPs, RPs or SPAs included)
