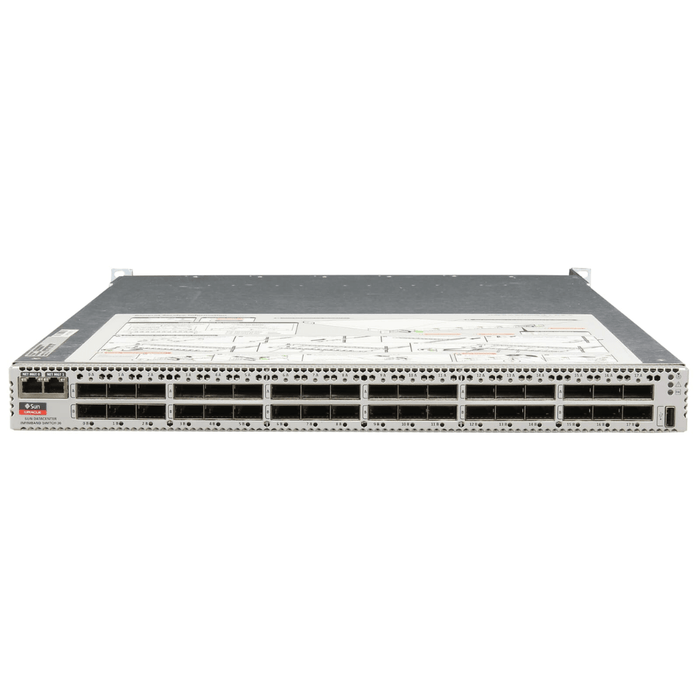

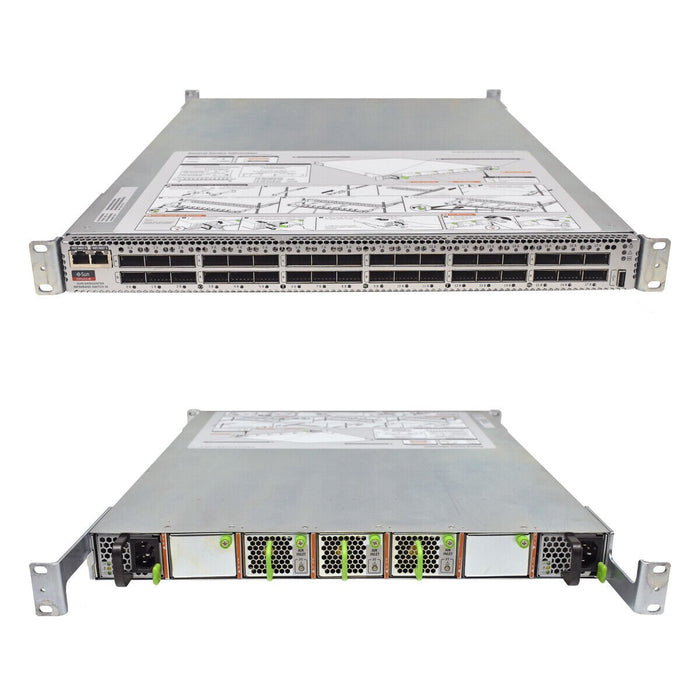

Sun Oracle 7052970 Datacenter Infiniband 36 Port QSFP Switch - Refurb

The refurbished Sun Oracle Datacenter InfiniBand Switch 36 delivers industry-leading low-latency, high-throughput connectivity for Oracle’s server and storage clusters. Designed to meet the demanding performance needs of modern datacenters, this 1U switch provides 36 QSFP ports with support for QDR, DDR, and SDR InfiniBand speeds.

Ideal for scalable high-performance computing (HPC) and enterprise cloud environments, it supports up to 2.3Tbps bi-directional throughput and includes an embedded InfiniBand management module for seamless integration, monitoring, and management of complex fabric topologies.

✔ Key Features & Benefits

✔ 36 x QSFP ports supporting QDR/DDR/SDR InfiniBand for flexible high-speed connectivity
✔ Up to 2.3 Tbps bidirectional throughput and 100ns latency for ultra-fast data transfers
✔ Integrated subnet manager with support for traffic isolation, QoS, and virtual clusters
✔ Redundant hot-swappable power supplies and fans ensure continuous availability
✔ Advanced system monitoring via Sun ILOM and support for multiple protocols including SNMP, SSH, and IPMI
✔ Rear-to-front airflow design suited for datacenter cooling optimization
✔ Ideal for building scalable, high-performance Oracle server clusters or HPC fabrics

✔ Ideal Uses

✔ High-performance computing environments requiring ultra-low latency and high bandwidth
✔ Oracle Sun server and storage clusters with InfiniBand interconnects
✔ Enterprise datacenters needing flexible fabric configurations and redundant management
✔ Research institutions or cloud providers with InfiniBand-based workload acceleration

✔ Specifications

✔ Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
✔ Form Factor: 1U Rackmount
✔ Ports: 36 x QSFP (4x) InfiniBand ports
✔ Data Rate: QDR (40Gbps), DDR, SDR compatible
✔ Throughput: 2.3 Tbps bidirectional
✔ Latency: 100 ns (QDR)
✔ Management: ILOM, IPMIv1.5/2.0, SNMP v1/v2c/v3, SSH, HTTP/S
✔ Virtual Lanes: 8 data lanes, 1 management lane
✔ MTU: 4,096 bytes
✔ Power Supply: Dual hot-swappable, 320W max
✔ Cooling: Rear-to-front airflow with redundant fans
✔ Dimensions (HxWxD): 44.5 x 445 x 609.6 mm
✔ Weight: 11.4 kg
✔ Warranty: 3 Month Carry-in Warranty
✔ What's in the Box: Switch, Power Cable
