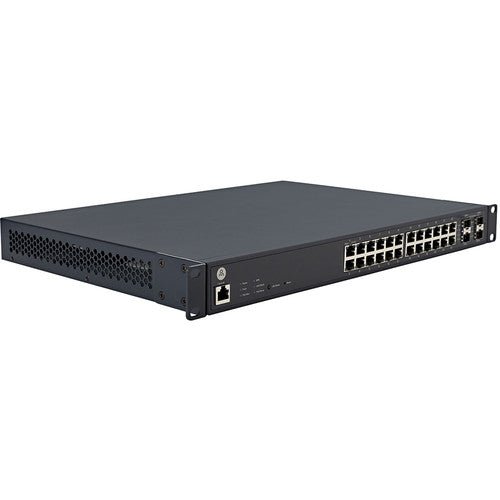

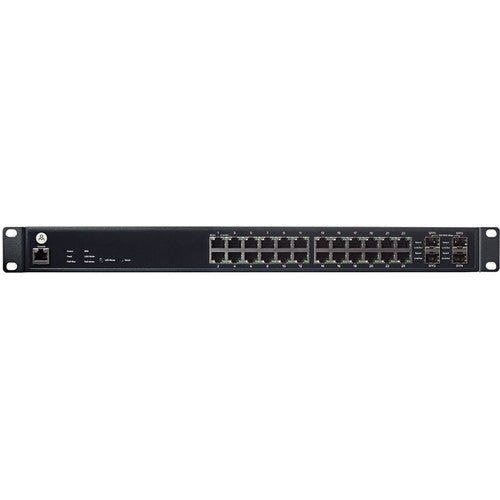

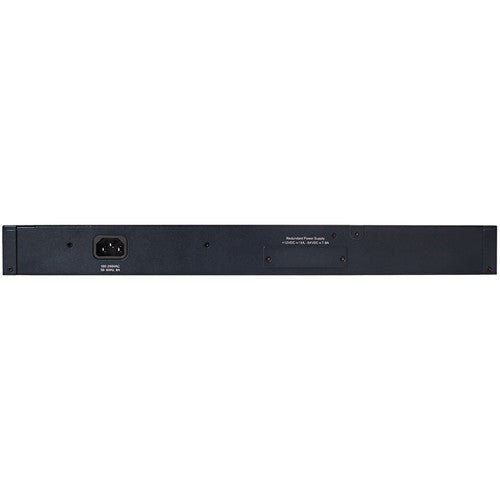

Open-Mesh S24 24 Port Gigabit PoE+ Cloud Managed Switch - Refurb

Designed for scalable enterprise networks, the Open-Mesh S24 delivers robust cloud-managed performance with 24 high-speed Gigabit Ethernet ports and advanced Layer 2 switching features. This unit supports full PoE+ (802.3at) power across all ports and offers remote cloud configuration, ideal for centralised network deployments in office parks, schools, hospitality, and retail environments.

With support for advanced VLAN, STP/RSTP, link aggregation, port security, and SNMPv3, the S24 integrates easily into demanding LAN infrastructures. Cloud-based management and diagnostics help administrators monitor and optimise performance from anywhere.

✔ Key Features & Benefits
✔ 24 x Gigabit Ethernet ports with full IEEE 802.3af/at PoE+ support
✔ 56 Gbps switching capacity with store-and-forward forwarding mode
✔ Advanced Layer 2 features including VLAN groups, port trunking, 802.1X access control, and ACL
✔ Full PoE management – per-port power control, priority, and user-defined limits
✔ Cloud-managed with CLI, SSH, Telnet, and SNMP v1/v2c/v3 support for flexible admin control
✔ Cable diagnostics, Syslog, SNTP, and RMONv1 for enhanced fault tracking and uptime
✔ Fanless design with internal PSU for quiet, efficient deployment

✔ Ideal Uses
✔ Powering VoIP phones, IP cameras, and wireless access points in small to mid-sized businesses
✔ Centralised network control for hotels, schools, or multi-floor offices
✔ Layer 2 secure networking in retail, education, or government institutions
✔ Ideal backbone switch for unified network topologies requiring VLANs and IGMP snooping

✔ Specifications
✔ Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
✔ Brand & Model: Open-Mesh S24
✔ Ports: 24 x Gigabit Ethernet Ports with PoE+ (IEEE 802.3af/at)
✔ Switching Capacity: 56 Gbps
✔ Forwarding Mode: Store-and-forward
✔ PoE Control: Power on/off per port, class configuration, priority, power limits
✔ Mounting Options: Desktop, Wall Mount, Rack Mount (brackets included)

✔ Memory: 256 MB SDRAM, 32 MB Flash
✔ Management:
 ✔ SSH / Telnet / CLI
 ✔ Cloud Management Interface
 ✔ SNMP v1/v2c/v3
 ✔ BootP/DHCP, TFTP Client, SNTP
 ✔ SYSLOG, RMONv1
 ✔ Cable Diagnostics

✔ Layer 2 Features:
 ✔ Link Aggregation, Port Mirroring, Trunking
 ✔ IGMP Snooping v1/v2/v3, MLD Snooping
 ✔ Storm Control, Port Isolation, Voice VLAN
 ✔ 802.1X Port-Based Access Control & Guest VLAN
 ✔ Spanning Tree Protocols: STP (802.1D), RSTP (802.1w), MSTP (802.1s)
 ✔ Access Control Lists (ACL)
 ✔ Attack Prevention

✔ QoS Queues: Based on 802.1p, Physical Port, TOS, DSCP
✔ LED Indicators: Power, Fault, PoE Max, LAN Mode, PoE Mode, Speed, Link/Act
✔ MIB Support: RFC1213, RFC1493, RFC1757, RFC2674

✔ Operating Temp: 0 to 50°C
✔ Storage Temp: -40 to 70°C
✔ Humidity: 5% – 95% non-condensing

✔ Dimensions: 43.9 x 31.0 x 4.3 cm
✔ Weight: 5.74 kg

✔ Warranty: 3 Month Carry-In Warranty
✔ What’s in the Box: Switch, Power Cable
