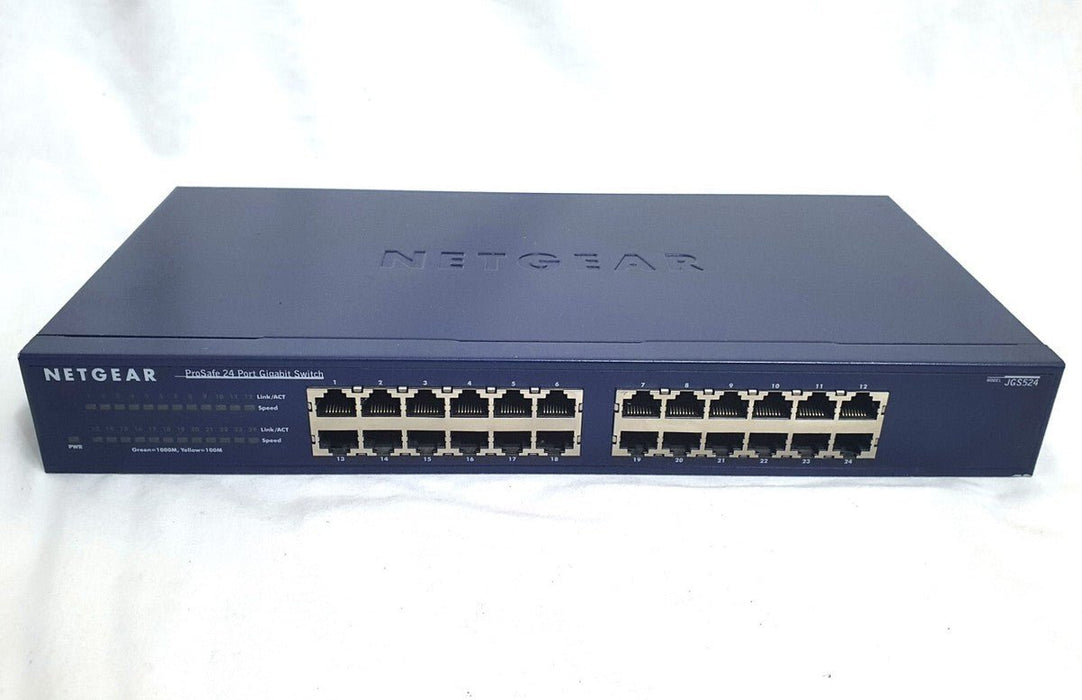

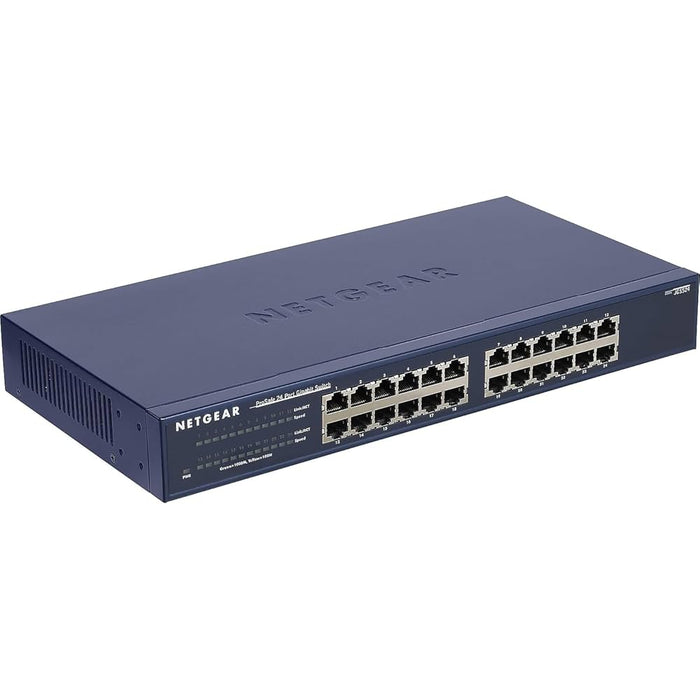

Netgear JGS524 V1 ProSafe 24 Port Gigabit Switch – Refurb
The Netgear JGS524 V1 is a 24-port unmanaged Gigabit switch built for reliable, high-speed wired networking. With support for IEEE Ethernet standards and automatic speed negotiation, it offers dependable switching performance for small office or business environments.
Designed with a metal chassis and internal power supply, this unit provides stable connectivity across 24 RJ-45 Gigabit ports and ensures low-latency data transmission without management overhead.
✔ Key Features & Benefits
✔ 24 x RJ-45 Gigabit Ethernet ports (10/100/1000 Mbps)
✔ Supports IEEE 802.3i, 802.3u, 802.3ab, 802.3z standards
✔ Automatic speed and duplex mode detection
✔ Frame forwarding rate up to 1,488,000 fps per port
✔ Latency as low as 2.8 μs at 1000 Mbps
✔ Jumbo frame support up to 9KB
✔ Filtering address table supports up to 8,000 MAC entries
✔ Internal 100–240V AC power supply
✔ Durable metal housing with compact 1U height
✔ Ideal Uses
✔ Expanding basic wired network capacity
✔ Connecting multiple PCs, printers, or networked devices
✔ Internal LAN traffic handling in small business environments
✔ Reliable data transfer for office or workshop networks
✔ Specifications
✔ Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
✔ Brand: Netgear
✔ Model: ProSafe JGS524 V1
✔ Form Factor: 1U Rackmountable or Desktop
✔ Ports: 24 x RJ-45 (10/100/1000 Mbps)
✔ Standards Compliance: IEEE 802.3i, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1p
✔ MAC Address Table: 8,000 entries
✔ RAM Buffer: 2 Mb
✔ Jumbo Frame Support: Up to 9KB
✔ Frame Forwarding Rate:
• 10 Mbps: 14,880 fps
• 100 Mbps: 148,800 fps
• 1000 Mbps: 1,488,000 fps
✔ Network Latency:
• 10 Mbps: 35 μs max
• 100 Mbps: 5.4–5.6 μs max
• 1000 Mbps: 2.8 μs max
✔ Power Input: 100–240V AC, 50/60Hz
✔ Power Consumption: Max 18.2W
✔ Dimensions: 328 x 169 x 43.2 mm
✔ Weight: 1.688 kg
✔ Operating Temperature: 0°C to 50°C
✔ Humidity Range: 10% to 90% (operating)
✔ Warranty: 3 Month Carry-in Warranty
✔ What's in the Box: Switch
