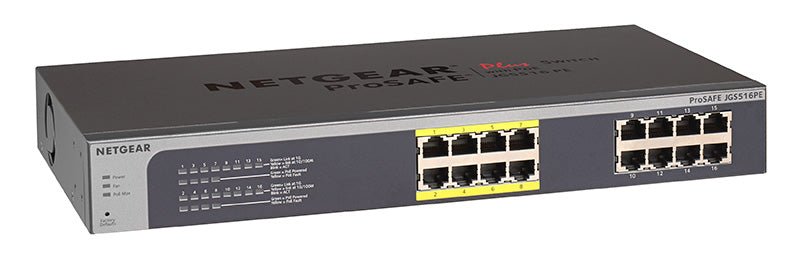

Netgear JGS516PE ProSafe Plus 16 Port Gigabit PoE Switch – Refurb

The Netgear JGS516PE ProSAFE Plus delivers high-speed connectivity and essential management features for growing business networks. With 16 Gigabit Ethernet ports, 8 of which provide PoE, it supports VLANs, QoS, and IGMP Snooping for efficient traffic management and prioritisation of critical applications.

This switch is designed for businesses that need reliable, energy-efficient networking with simple setup and centralised control. Its fan-cooled design ensures consistent performance in demanding environments.

✔ Key Features & Benefits

✔ 16 Gigabit Ports with 8 PoE – Connect devices and power PoE-enabled equipment with 85W total PoE budget.
✔ VLAN & QoS Support – Segment networks and prioritise critical traffic for optimal performance.
✔ Multicast Optimisation – IGMP Snooping for efficient streaming and media delivery.
✔ Enhanced Security & Stability – Loop detection, DoS prevention, and broadcast storm control.
✔ Energy Efficient – IEEE 802.3az compliance reduces power consumption without affecting performance.

✔ Ideal Uses

✔ Small to Medium Businesses – Expand network capacity with PoE-enabled ports for IP phones, cameras, and APs.
✔ VoIP & Video Conferencing – Prioritise latency-sensitive traffic for smooth communication.
✔ Surveillance Systems – Power IP cameras while managing video traffic efficiently.
✔ Office Networking – Provide reliable connectivity for multiple devices in a central location.

✔ Specifications

✔ Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
✔ Brand: Netgear
✔ Model: JGS516PE
✔ Form Factor: Rackmount
✔ Ports: 16 × 10/100/1000 Gigabit Ethernet (8 with PoE)
✔ Total PoE Power Budget: 85W
✔ Switching Capacity: 32Gbps
✔ MAC Address Table Size: 16K
✔ Buffer Size: 6Mbit
✔ VLAN Support: Up to 100 VLANs, 802.1Q VLAN Tagging, Port-based VLAN
✔ QoS Support: IEEE 802.1p, Port-based, TOS, Strict Priority Queue Technology
✔ Multicast Support: IGMP Snooping v1, v2, v3
✔ Traffic Management: Rate limiting, loop detection, DoS prevention, broadcast storm control
✔ Jumbo Frame Support: Up to 9K packet size
✔ Management: Web GUI, PC utility, port mirroring, cable test, firmware upgrade, config download/upload
✔ Power Consumption (Max): 110W
✔ Cooling: 1 × Fan
✔ Dimensions: 328 × 169 × 43 mm
✔ Weight: 1.67 kg
✔ Operating Temperature: 0°C to 50°C
✔ Storage Temperature: –20°C to 70°C
✔ Certifications: CE, FCC Part 15 Class A, EN 55022, UL 1950, EN 60950
✔ Warranty: 3 Month Carry-in Warranty
✔ What’s in the Box: Netgear JGS516PE Switch
