Meganet MEGALSPA2SCS24 Light Speed S Panel SCS/LC 24-Port Sliding Panel – New

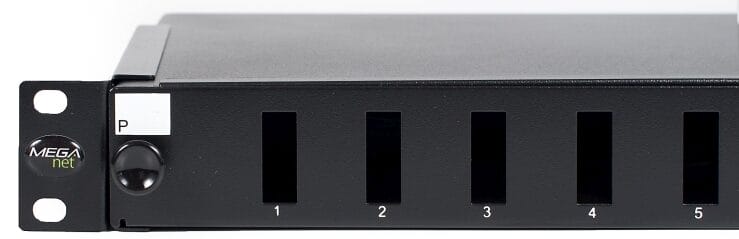

The Meganet MEGALSPA2SCS24 is a 19-inch rack-mountable optical fibre sliding panel designed for indoor network installations. Engineered for voice, video, and high-speed data applications—including 10 Gb Ethernet—this sliding panel provides an organized and future-proof solution for rapidly evolving backbone and desktop requirements. Its sliding design and robust construction allow easy access for patching and maintenance in professional network environments.
Built to meet industry standards, the MEGALSPA2SCS24 supports SC Duplex / LC Quad connections across 24 ports, providing flexibility and reliability for modern fibre optic networks. Adjustable mounting brackets, multiple entry options, and a removable top plate make installation straightforward while protecting delicate fibre cables.
✔ Key Features & Benefits
✔ 24-Port Optical Fibre Panel – SC Duplex / LC Quad configuration
✔ 1U, 19″ Rack-Mountable – Compact and space-saving design
✔ Sliding Panel Design – Easy access for maintenance and patching
✔ ISO11801, TIA/EIA 568C, EN50173 Compliant – Industry-standard reliability
✔ Multiple Cable Entry/Exit Options – Flexible network cabling management
✔ Adjustable Rack Mounting Brackets – Secure and versatile installation
✔ Removable Top Plate – Simplifies fibre management and maintenance
✔ Ideal Uses
✔ Data centres and network backbone installations
✔ High-speed Ethernet networks up to 10 Gb
✔ Enterprise, commercial, and campus network deployments
✔ Fibre optic patching and cross-connect applications
✔ Specifications
✔ Condition: New item, fully tested and ready to use
✔ Brand: Meganet
✔ Model: MEGALSPA2SCS24
✔ Form Factor: 1U, 19″ Rack-Mountable Sliding Panel
Ports & Connectivity
✔ 24 × SC Duplex / LC Quad
✔ Supports voice, video, and data applications including 10 Gb Ethernet
Construction & Design
✔ Sliding panel for easy access
✔ Removable top plate
✔ Adjustable rack mounting brackets
✔ Multiple cable entry/exit options
✔ Recessed adaptor mounting for improved bend radius
Compliance
✔ ISO11801
✔ TIA/EIA 568C
✔ EN50173
✔ Warranty
✔ 1 Month Warranty
✔ What’s in the Box
✔ Meganet MEGALSPA2SCS24 24-Port Sliding Fibre Panel
