Huawei AP7060DN Indoor Wi-Fi 6 Access Point – 2 x GE RJ45 – 1 x USB – 1 x Console – Open Box
The Huawei AP7060DN is a premium-grade Wi-Fi 6 (802.11ax) access point engineered for high-capacity indoor environments. It offers blazing performance with 4x4 MIMO on 2.4GHz and 8x8 MIMO on 5GHz, delivering fast, stable wireless connections for up to 512 users.
Designed for modern enterprise deployments, the AP7060DN features dual 10GE/GE uplinks, BLE 5.0, and support for ZigBee/RFID IoT modules, making it a powerful solution for smart offices, education, and high-density public venues.
✔ Key Features & Benefits
✔ Wi-Fi 6 (802.11ax) with 4×4 (2.4GHz) + 8×8 (5GHz) MU-MIMO for top-tier throughput
✔ Combined antenna gain of 4 dBi (2.4GHz) and 2 dBi (5GHz) for broad, even coverage
✔ Dual high-speed uplinks: 1 × 10GE/5GE/2.5GE/GE + 1 × GE RJ45 interface
✔ Integrated BLE 5.0 and IoT module slot for ZigBee or RFID smart applications
✔ PoE++ (802.3bt) and PoE+ (802.3at) support with dynamic radio scaling
✔ Serves up to 512 concurrent users and 16 SSIDs per radio
✔ Built-in omnidirectional dual-band antennas and IP41 environmental protection
✔ Multiple mounting options with sleek, low-profile form factor
✔ Ideal Uses
✔ Corporate campuses with dense wireless device deployments
✔ Schools, universities, and training facilities with hybrid digital infrastructure
✔ Hospitals and smart buildings requiring secure IoT integration
✔ Airports, malls, and large indoor public spaces needing enterprise-grade Wi-Fi
✔ Specifications
✔ Condition: Open Box – item opened for inspection, unused and in original packaging
✔ Brand: Huawei
✔ Model: AP7060DN
✔ Technology: Wi-Fi 6 (802.11ax)
✔ MIMO Configuration:
• 2.4GHz: 4×4
• 5GHz: 8×8
✔ Max Concurrent Users: ≤ 512
✔ SSIDs per Radio: ≤ 16

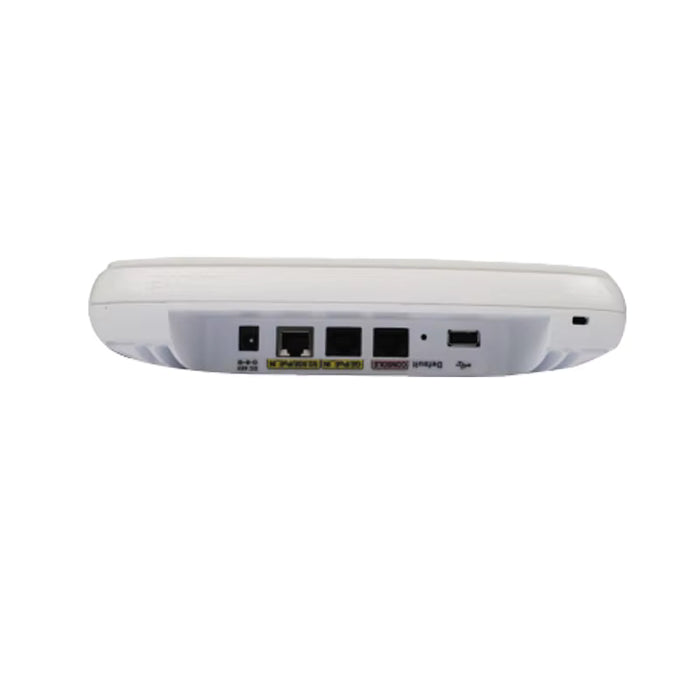

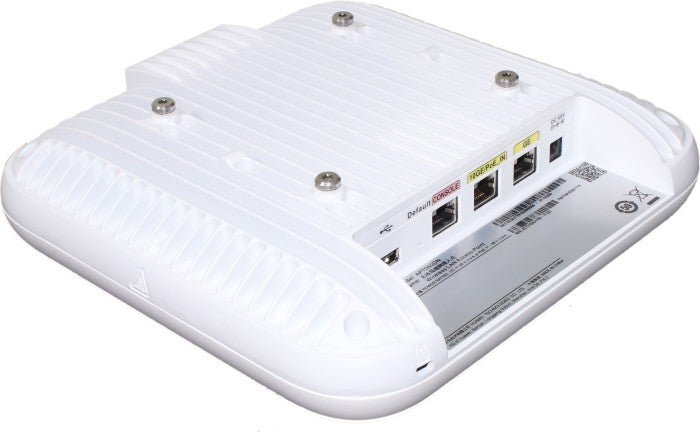

✔ Interfaces:
• 1 × 10GE/5GE/2.5GE/GE RJ45
• 1 × GE RJ45
• 1 × Console (RJ45)
• 1 × USB
✔ IoT Expansion: 1 × external IoT slot (supports ZigBee & RFID)
✔ Bluetooth: BLE 5.0
✔ Antenna Type: Built-in omnidirectional dual-band
✔ Antenna Gain (Peak):
• 2.4GHz: 4.6 dBi
• 5GHz: 5.6 dBi
✔ Combined Antenna Gain:
• 2.4GHz: 4 dBi
• 5GHz: 2 dBi
✔ Transmit Power (Max):
• 2.4GHz: 24 dBm
• 5GHz: 27 dBm
✔ Power Input:
• DC: 42.5V – 57V
• PoE: IEEE 802.3bt (PoE++) / 802.3at (PoE+)
✔ Power Consumption:
• PoE++: < 30W
• PoE+: < 25.5W
✔ Operating Temperature: –10°C to +50°C
✔ Storage Temperature: –40°C to +70°C
✔ Operating Humidity: 5% – 95% (non-condensing)
✔ Dust/Water Protection: IP41
✔ Altitude Range: –60 m to +5000 m
✔ Atmospheric Pressure: 53 kPa to 106 kPa
✔ Dimensions: 220 mm × 220 mm × 57 mm
✔ Weight: 1.8 kg
✔ Warranty: 3 Month Carry-In Warranty
✔ What’s in the Box: Huawei AP7060DN Access Point Only (No Mounting Kit or Accessories Included)
✔ Compliance & Standards
✔ Wi-Fi Protocols: 802.11a/b/g/n/ac/ax
✔ Security: WPA3, WPA2, WPA, 802.1X, AES, TKIP, 802.11i
✔ IEEE Standards: 802.11e/k/u/v/w/r/d/h
✔ Safety Standards: UL 60950-1, IEC 60950-1/62368-1, EN 60950-1
✔ EMC Compliance: EN 301 489, FCC Part 15, CISPR 22/24, IEC61000 series
✔ RF Standards: ETSI EN 300 328 / 301 893, RSS-210, AS/NZS 4268
✔ Environmental: RoHS (2002/95/EC, 2011/65/EU), WEEE (2012/19/EU), REACH (1907/2006/EC)
