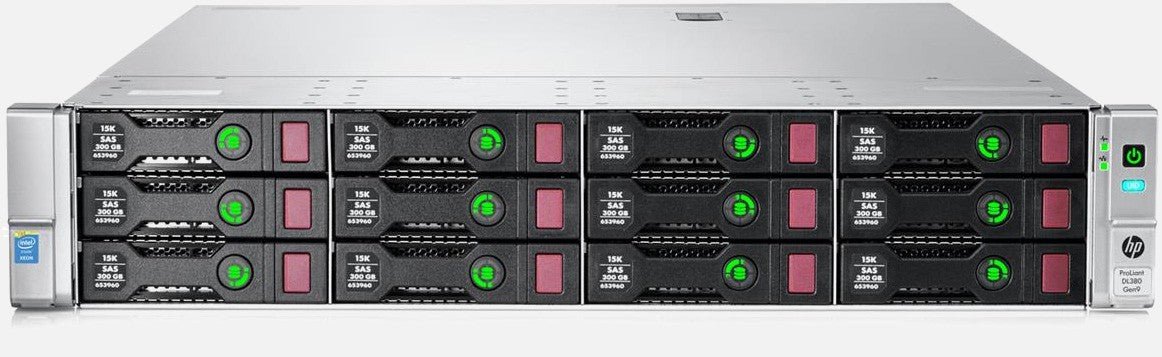

HP Proliant DL380 Gen9 2U Rackmount Server 12 LFF Front 2 LFF Rear - 2 x Xeon E5-2699 V3 - 128GB DDR4 - 10 x 6TB HDD + 4 x 1.92TB SSD - P840 Raid - HP 331i QP + HP 546-FLR SFP+ DP - 2 x 800 Watt - Refurb

Designed for high-capacity enterprise workloads, the HP ProLiant DL380 Gen9 is a versatile 2U rackmount server equipped with dual Intel Xeon E5-2699 V3 processors and massive hybrid storage. With 128GB DDR4 RAM and a powerful P840 RAID controller, this server is optimized for data-heavy operations like virtualization, analytics, file hosting, and infrastructure scaling.

The unit supports 12 LFF bays in front and 2 LFF bays in rear, pre-installed with 10 x 6TB HDDs and 4 x 1.92TB SSDs, making it ideal for mixed-use environments requiring fast IOPS and large storage throughput. Dual 10Gb SFP+ and quad 1GbE onboard NICs ensure robust connectivity for modern data centers.

✔ Key Features & Benefits

✔ 2 x Intel Xeon E5-2699 V3 CPUs – 18 cores / 36 threads each, 2.3GHz base, 3.6GHz Turbo
✔ 128GB DDR4 ECC Registered RAM – Scalable up to 768GB via 24 DIMM slots
✔ 10 x 6TB LFF HDD + 4 x 1.92TB SSD – Balanced high-capacity and high-speed storage
✔ HP Smart Array P840 RAID Controller – 2GB FBWC, 12Gb/s SAS RAID 0/1/5/6/10
✔ 4 x 1GbE (HP 331i) + 2 x 10Gb SFP+ (HP 546-FLR) – Versatile and high-speed networking
✔ 2 x 800W Redundant PSU – Hot-swappable power supply units for failover protection
✔ Advanced iLO & OneView Support – Secure, remote hardware management included
✔ Hot-swap Fans, Drive Bays & Redundant Cooling – Designed for uptime-critical operations

✔ Ideal Uses

✔ Virtualization Environments – Host multiple VMs with ease using 36 cores and high RAM scalability
✔ Hybrid Storage Applications – Use SSDs for speed and HDDs for bulk storage or backups
✔ Enterprise File Servers – Ideal for handling large volumes of file access across users
✔ Data-Intensive Applications – Perfect for analytics, surveillance storage, and application servers

✔ Specifications

✔ Condition: Refurbished device with scratches and scuffs. Device has been extensively tested and is fully functional.
✔ Form Factor: 2U Rackmount – 28.75" chassis depth (LFF configuration)
✔ Processors:
 • 2 x Intel Xeon E5-2699 V3 – 18 cores / 36 threads each – 2.3GHz base – 3.6GHz Turbo – 45MB cache per CPU
✔ Memory:
 • 128GB DDR4 ECC RDIMM
 • 24 DIMM slots total – Max capacity: 768GB
✔ Storage Configuration:
 • 10 x 6TB LFF SAS HDDs (Hot-Plug)
 • 4 x 1.92TB 2.5" SSDs (Mounted in LFF adapters)
✔ RAID Controller: HP Smart Array P840 – 12Gb/s SAS – 2GB FBWC – RAID 0/1/5/6/10
✔ Drive Bays:
 • Front: 12 x LFF Hot-Swap Bays
 • Rear: 2 x LFF Bays
✔ Networking:
 • 4 x 1GbE (HP 331i Embedded Quad-Port)
 • 2 x 10Gb SFP+ (HP 546-FLR Dual-Port Adapter)
✔ Management Tools:
 • HP iLO Advanced
 • HP OneView & Insight Online
✔ Power Supplies: 2 x 800W Hot-Plug Redundant PSUs – 94% efficiency – Flexible Slot design
✔ Expansion Slots:
 • Up to 6 PCIe 3.0 slots (CPU-dependent configuration)
✔ Cooling: Hot-plug redundant fans – N+1 Configuration
✔ Ports:
 • VGA (front optional + rear standard), Serial, 6 x USB 3.0, SD slot
✔ Environmental:
 • Operating Temp: 5°C to 45°C
 • Operating Humidity: 10–90% RH
✔ Dimensions: 8.73 x 44.55 x 73.02 cm (3.44 x 17.54 x 28.75 in)
✔ Weight: Approx. 23.6 kg
✔ Operating System: Not included (OS can be installed on request)
✔ Warranty: 6 Month Carry-in Warranty
✔ In the Box: Server, 2 x Power Cables
