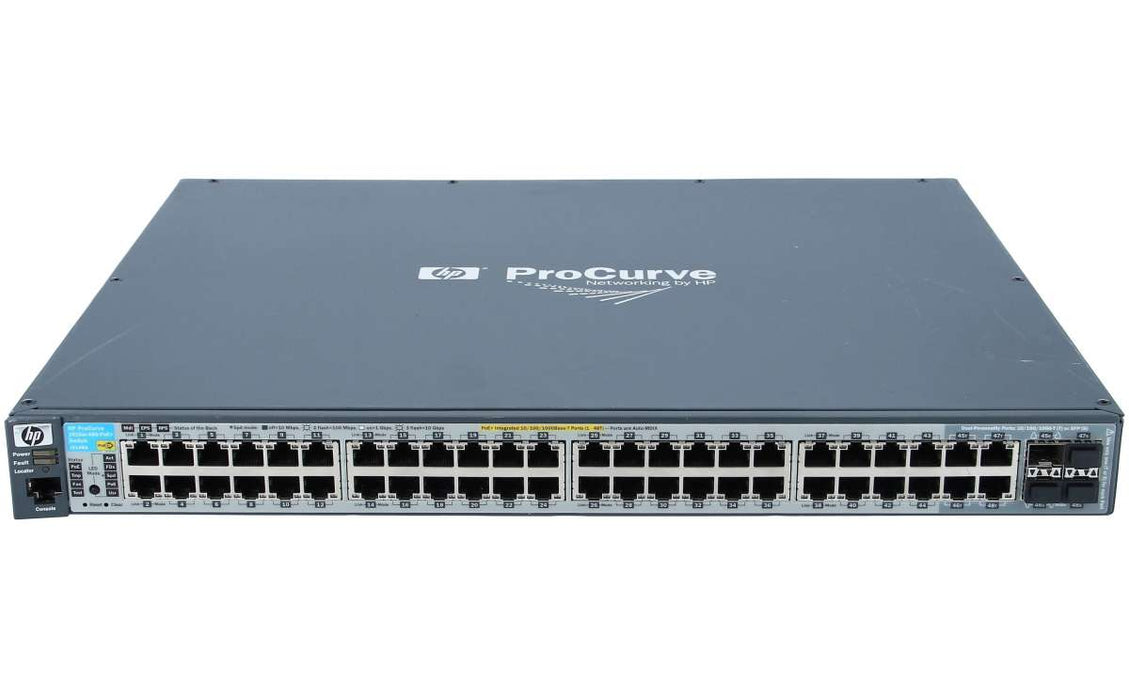

HP Procurve J9148A - Procurve 2910Al-48G-Poe+ Switch - Refurb Switch

The HP ProCurve 2910al-48G-PoE+ is a high-performance, Layer 3 managed switch designed for scalable enterprise networks. With 44 auto-sensing Gigabit Ethernet ports and 4 dual-personality ports (RJ-45 or SFP), plus support for four 10GbE uplinks via optional modules, this switch delivers maximum flexibility and speed at the edge of the network.

Offering full IEEE 802.3af/802.3at PoE+ capabilities, advanced routing, and security features such as sFlow, ACLs, and rate limiting, the 2910al-48G is ideal for converged infrastructures, branch deployments, or top-of-rack data center use where performance and power efficiency are critical.

✔ Key Features & Benefits
✔ 44 × 10/100/1000 auto-sensing ports + 4 dual-personality Gigabit/SFP ports
✔ Supports up to 4 × 10GbE uplinks via optional modules (CX4 or SFP+)
✔ Full PoE/PoE+ support (IEEE 802.3af/at) with up to 556W max consumption
✔ Layer 2 and Layer 3 switching with static IP and RIP routing capabilities
✔ Advanced management via CLI, web browser, and ProCurve Manager
✔ Enterprise-class features including sFlow, ACLs, rate limiting, and MAC security
✔ High switching capacity of 176 Gbps and up to 131 Mpps throughput
✔ Fan-based cooling with 38.1 dB acoustic pressure (DIN 45635T.19)

✔ Ideal Uses
✔ Enterprise edge deployments requiring high PoE+ capacity for VoIP and APs
✔ Branch offices or SMBs needing Layer 3 routing and gigabit performance
✔ Top-of-rack switch in data center environments for high-density connectivity
✔ Smart buildings, IP surveillance, and access control with centralized management

✔ Specifications

• ✔ Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.

• ✔ Product Code: J9148A

• ✔ Ports: 44 × 10/100/1000 + 4 dual-personality (RJ-45 or SFP) ports

• ✔ PoE/PoE+ Support: IEEE 802.3af / 802.3at compliant

• ✔ 10GbE Uplink Support: 4 × 10GbE (via optional CX4/SFP+ modules)

• ✔ Console Port: 1 × RJ-45 serial console

• ✔ Switching Capacity: 176 Gbps

• ✔ Throughput: Up to 131 Mpps

• ✔ Latency: < 2.9 µs (1Gbps), < 1.3 µs (10Gbps)

• ✔ MAC Address Table: 16,000 entries

• ✔ Routing Table Size: 2000 entries

• ✔ Memory: 4MB flash ROM, 1GB flash, 512MB SDRAM

• ✔ Packet Buffer Size: 6MB

• ✔ Processor: Dual ARM1156T2S @ 515 MHz

• ✔ Management: CLI, Web GUI, ProCurve Manager, RS-232C (OOB)

• ✔ Power Input: 100–127 / 200–240 VAC, 50/60 Hz, Auto-sensing

• ✔ Power Consumption: Idle – 89W, Max – 556W

• ✔ Heat Dissipation: Max 667 BTU/hr

• ✔ Dimensions (W × D × H): 44.25 × 36.58 × 4.39 cm (1U)

• ✔ Weight: 5.88 kg

• ✔ Operating Temp / Humidity: 0–55°C / 15–95% (non-condensing)

• ✔ Storage Temp / Humidity: -40–70°C / 15–95% (non-condensing)

• ✔ Altitude: Up to 3,000 m

• ✔ Acoustics: 51.5 dB power, 38.1 dB pressure

• ✔ Warranty: 6 Month Carry-in Warranty

• ✔ What’s in the Box: Switch, Power Cable
