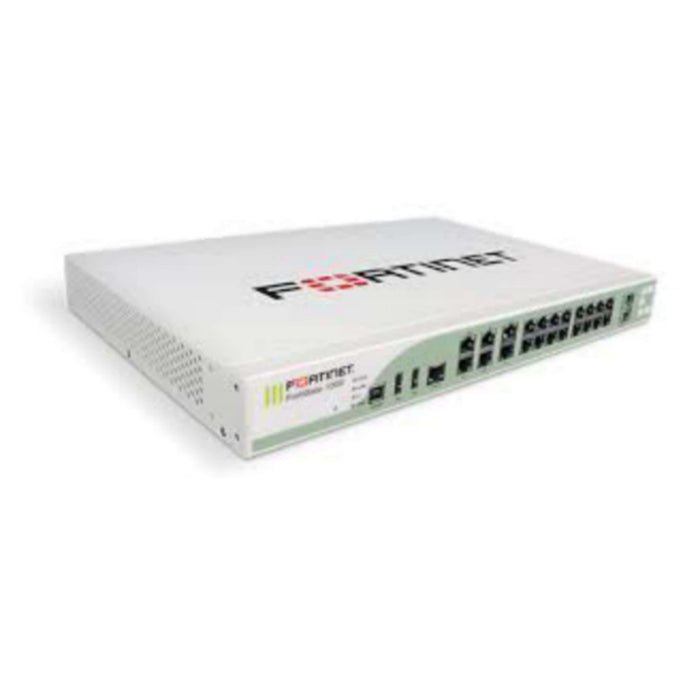

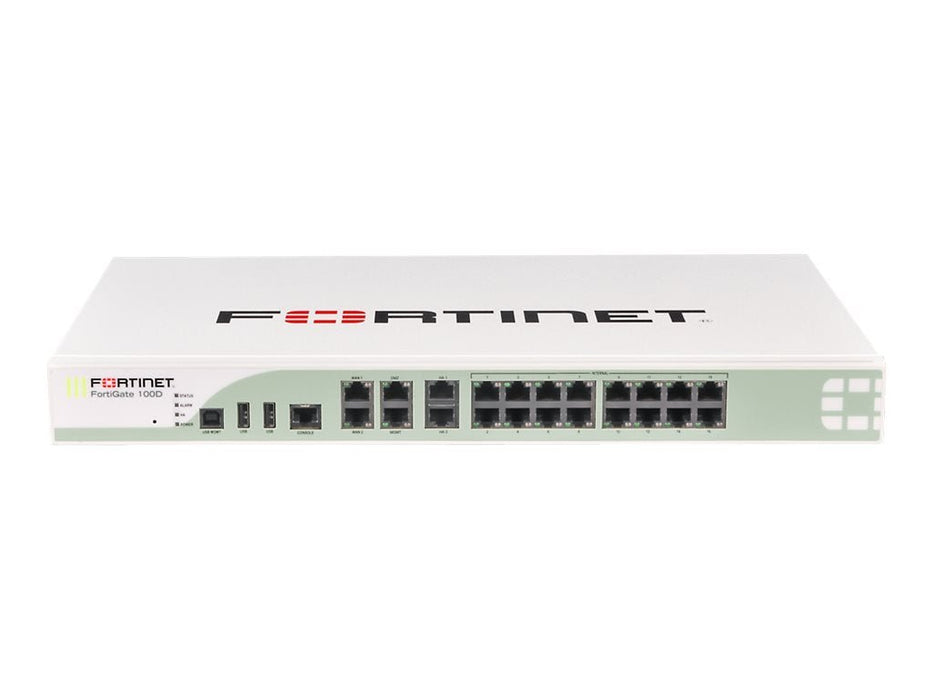

Fortinet FortiGate 100D Security Appliance 16 Gbe RJ-45 - Refurb

Fortinet’s FortiGate 100D offers robust enterprise-grade security in a 1U rackmount form, designed to deliver high-performance threat protection, flexible deployment, and efficient network control. With 20 Gigabit RJ45 ports and a firewall throughput of 2.5 Gbps, this appliance is built for mid-size businesses and branch offices needing comprehensive security without compromising performance.

Equipped with 32GB internal storage and support for up to 64 FortiAPs and 10 Virtual Domains, the FortiGate 100D provides scalable UTM capability, high concurrent session capacity (2 million), and enterprise-class IPsec/SSL VPN handling.

✔ Key Features & Benefits

✔ High-Performance Security Appliance – 2.5 Gbps firewall throughput, 950 Mbps IPS, and 200 Mbps threat protection
✔ Enterprise-Grade Connectivity – 20 x GE RJ45 ports (incl. DMZ, Mgmt, HA, internal switch), 2 shared GE RJ45/SFP ports
✔ Built-In Storage & Expandability – 32GB onboard storage with support for 64 FortiAPs and up to 600 FortiClients
✔ Full UTM Suite Capability – Includes IPS, antivirus, SSL-VPN, application control, and more
✔ VPN and SSL Support – 380 Mbps IPsec VPN throughput and support for up to 10,000 client VPN tunnels
✔ High Availability Ready – Active/Active, Active/Passive, or Clustering for maximum uptime
✔ Compact 1U Rackmount Design – Ideal for data closets or managed infrastructure deployments

✔ Ideal Uses

✔ Secure Gateway for Medium-Sized Enterprises – Perfect for companies needing high-throughput firewalling and unified threat management
✔ Multi-Site VPN Hub – Supports thousands of IPsec and SSL tunnels for remote worker or branch office connectivity
✔ Managed Network Security for Schools and Clinics – Protects and segments sensitive data traffic across many endpoints
✔ Wi-Fi AP and Client Control – Manage FortiAPs and up to 600 FortiClients from a single appliance for seamless policy enforcement

✔ Specifications

✔ Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional
✔ Firewall Throughput: 2.5 Gbps
✔ IPS Throughput (Optimal Traffic): 950 Mbps
✔ Threat Protection Throughput: 200 Mbps
✔ Concurrent Sessions: 2,000,000
✔ New Sessions/Second: 22,000
✔ IPsec VPN Throughput: 380 Mbps
✔ SSL-VPN Throughput: 300 Mbps
✔ Managed FortiAPs: 64 total / 32 tunnel mode
✔ Registered FortiClients (Max): 600
✔ Virtual Domains: 10 (default and max)
✔ Networking Ports:
  • 20 x GE RJ45 (incl. 1 x DMZ, 1 x Mgmt, 2 x HA, 16 x Switch)
  • 2 x Shared GE RJ45/SFP Combo Ports
  • 1 x Console Port, 1 x USB Client, 2 x USB Server
✔ Internal Storage: 32GB
✔ Power Supply: 100–240V AC, 50–60Hz, Max 63.1W
✔ Dimensions: 44 x 432 x 298 mm (1U)
✔ Weight: 4.3 kg
✔ Operating Temp: 0–40°C
✔ Humidity: 10–90% Non-Condensing
✔ Certifications: ICSA (Firewall, IPsec, IPS, AV, SSL-VPN), USGv6/IPv6, CE, FCC Class A, UL/cUL
✔ Warranty: 3 Month Carry-in Warranty
✔ What's in the Box: Security Appliance only (no transceivers or rack rails included)
