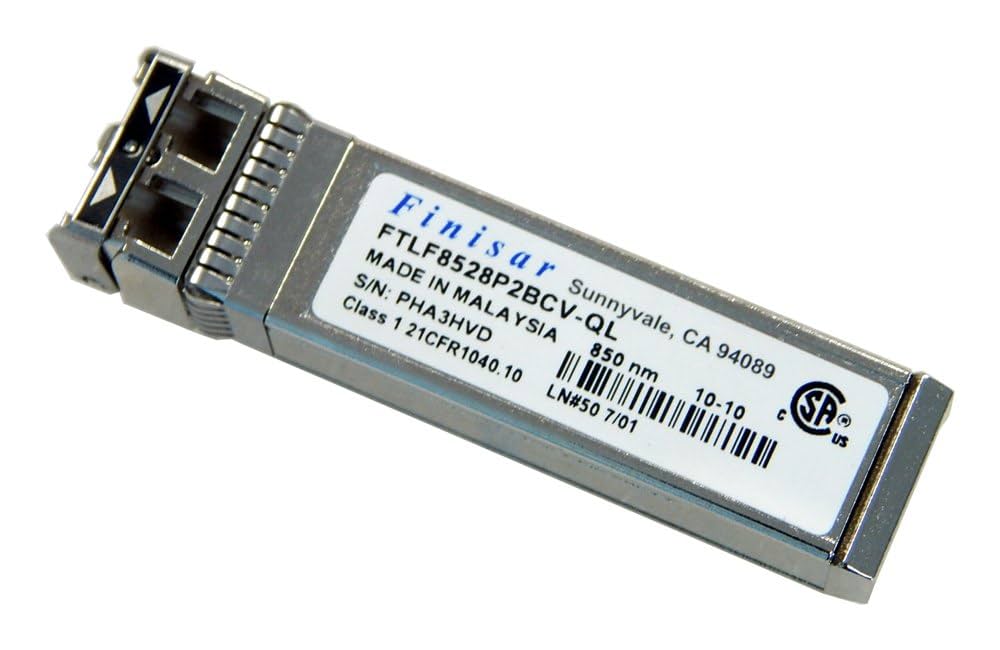

Finisar FTLF8528P2BCV-QL 850nm Transceiver – Refurb

The Finisar FTLF8528P2BCV-QL is a high-performance multi-protocol transceiver module engineered for short-range fiber communication. Operating at 850nm over multimode fiber (MMF), it supports data rates from 1Gbps to 10Gbps, covering a wide range of Fiber Channel applications from 1G up to 10G. This versatility ensures reliable integration into existing infrastructures and makes it suitable for enterprises upgrading their network speeds without extensive hardware changes.

With hot-swappable SFP+ design, advanced digital diagnostics (DDM/DOM), and compliance with international standards, this transceiver ensures stability, easy maintenance, and interoperability. Its extended temperature support and proven Finisar reliability make it an excellent choice for demanding data center, enterprise, and SAN environments.

✔ Key Features & Benefits

✔ Multi-Speed Capability – Supports 1G, 2G, 4G, 8G, and 10G Fiber Channel for maximum deployment flexibility.
✔ Optimized Short-Range Fiber – Operates over MMF with distances up to 300m, perfect for enterprise and SAN environments.
✔ Digital Diagnostics Monitoring – Provides real-time insights into module performance for proactive maintenance.
✔ Standards-Compliant – Fully compliant with IEEE, RoHS, and SFP MSA for broad compatibility.
✔ Reliable Build – Designed with VCSEL laser and PIN receiver for consistent optical performance.

✔ Ideal Uses

✔ Data centers requiring scalable multi-speed Fiber Channel connectivity.
✔ Enterprise SAN networks needing reliable short-range transceivers.
✔ Cloud service providers upgrading from 1G to 10G over MMF.
✔ High-performance computing clusters needing flexible fiber connectivity.

✔ Specifications

✔ Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
✔ Brand: Finisar
✔ Model: FTLF8528P2BCV-QL
✔ Form Factor: SFP+ Transceiver
✔ Media Type: Multi-Mode Fiber (MMF)
✔ Supported Standards: 1G, 2G, 4G, 8G, 10G Fibre Channel
✔ Data Rates: 1.0625 to 10.52 Gbps
✔ Wavelength: 850nm
✔ Distance: Up to 300m
✔ Connector: Duplex LC
✔ Transmitter Type: VCSEL Laser
✔ Receiver Type: PIN Photodiode
✔ Optical Budget: 4.6 dB
✔ TX Power: -6.5 dBm to +1 dBm
✔ RX Sensitivity: -11.1 dBm
✔ RX Overload: -1 dBm
✔ Dispersion: 110 ps/nm
✔ Power Supply: +3.3V
✔ Power Consumption: Low Power Operation
✔ Digital Diagnostics (DDM/DOM): Supported
✔ Temperature Range: -5°C to 70°C
✔ Compliance: CE, RoHS, Class 1 FDA/IEC 60825-1 Laser Safety, SFF-8431, SFP MSA
✔ Warranty: 12 Month Warranty
✔ What’s in the Box: 1 × Finisar FTLF8528P2BCV-QL Transceiver Module
