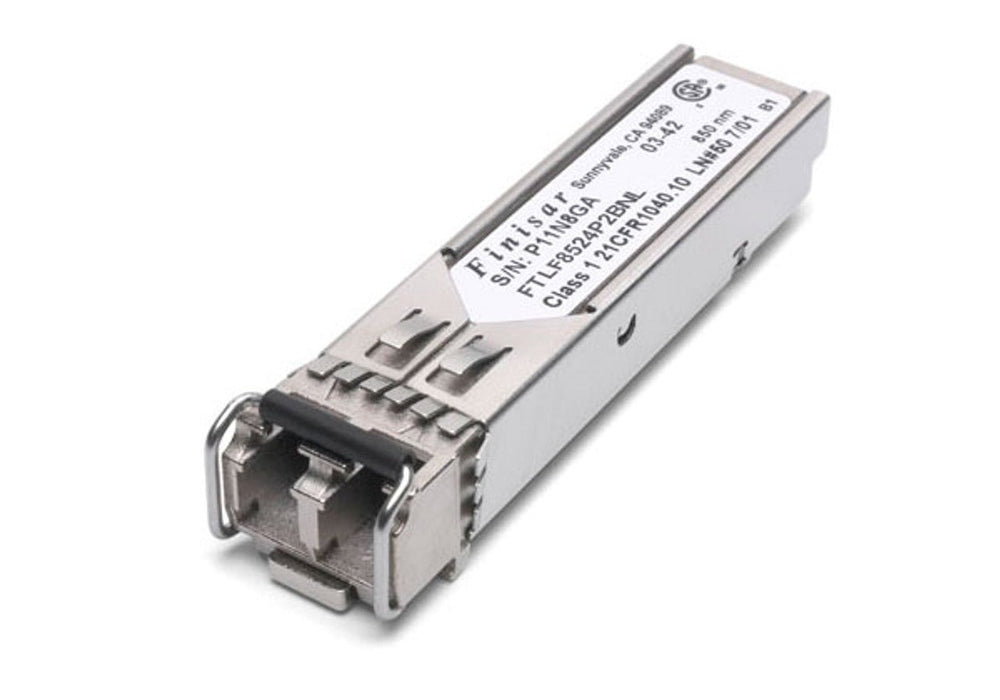

Finisar FTLF8524P2BNV 4G Fibre Channel (4GFC) 300m SFP Transceiver - Refurb
This Finisar FTLF8524P2BNV is a high-performance 4G Fibre Channel SFP transceiver designed for use in high-speed storage networks and optical interconnects. Supporting multimode fibre (MMF) at 850nm, it offers data rates up to 4.25 Gb/s with a reach of 300 meters, ideal for short-range SAN deployments.
The transceiver integrates Digital Diagnostic Monitoring (DDM) and operates reliably across an extended industrial temperature range. With LC duplex connectivity and full Fibre Channel compliance, it’s suitable for switches, HBAs, NICs, and mass storage systems demanding robust and error-free communication.
✔ Key Features & Benefits
✔ 4.25 Gb/s data rate supporting 1G/2G/4G Fibre Channel applications
✔ 850nm VCSEL laser for short-reach 300m over multimode fibre
✔ Digital Diagnostic Monitoring (DDM) for real-time performance tracking
✔ Wide operating temperature range from -20°C to +85°C
✔ Compact SFP form factor for flexible integration into existing hardware
✔ Fully compliant with IEC, FDA, and RoHS standards for safety and environmental protection
✔ Ideal Uses
✔ Fibre Channel SAN interconnects in enterprise data centers
✔ Integration with switches, hubs, and mass storage systems
✔ Host Bus Adapter (HBA) and NIC connectivity for high-speed I/O
✔ Fibre channel-based backup and archival environments
✔ Specifications
✔ Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
✔ Compatible OEM Part Number: FTLF8524P2BNV
✔ Alternative Part Number: OSP4G-8505DTR-FNS (Optcore)
✔ Form Factor: SFP
✔ Data Rate: 4.25 Gb/s
✔ Wavelength: 850 nm
✔ Fibre Type: MMF (Multimode Fibre)
✔ Max Distance: 300 m
✔ Optical Components: VCSEL/PIN
✔ Transmitter Power: -6 to -1 dBm
✔ Extinction Ratio: > 5 dB
✔ Receiver Sensitivity: < -15 dBm
✔ Receiver Overload: > 0.5 dBm
✔ Connector: LC Duplex
✔ Digital Diagnostic Monitoring: Yes
✔ Operating Temperature: -20°C to 85°C
✔ Storage Temperature: -40°C to 85°C
✔ Weight: 0.03 kg
✔ Compliance: IEC/EN 61000-4-2, IEC-60825, FDA 21CFR 1040.10 & 1040.11, RoHS
✔ Warranty: 3 Month Carry-in Warranty
✔ What's in the Box: Transceiver Module Only
