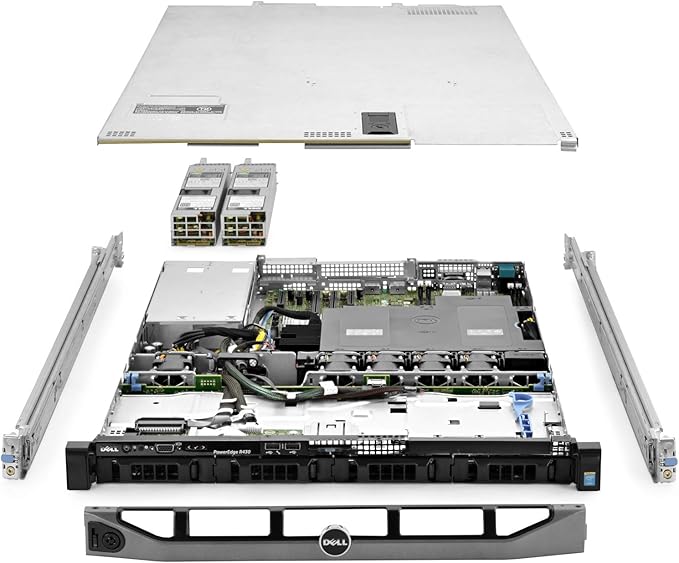

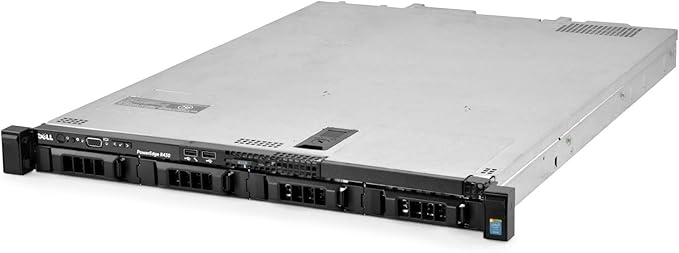

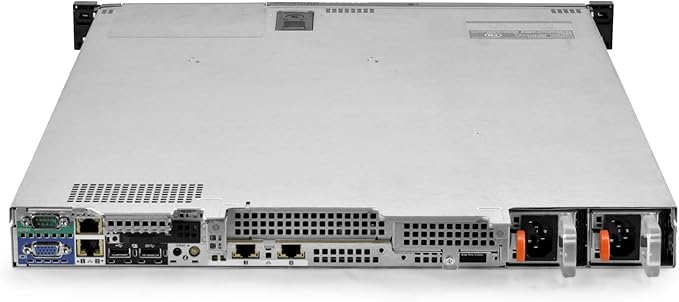

Dell PowerEdge R430 1U Rackmount server - 4 SFF - 2 x Xeon E5-2640 V3 - 128GB DDR4 - 2 x 1TB SAS - Perc - Intel 540 + DP 10GB RJ-45 - 2 x 550 Watt - Refurb

Feature PowerEdge R430 technical specification
Form factor 1U rack server
Processor
Intel® Xeon® processor E5-2600 v3 product family
Processor sockets: 2
Chipset: C610
Internal interconnect: Up to 9.6GT/s
Cache: 2.5MB per core; core options: 6, 8, 10, 12, 16
Memory DDR4 DIMMs at up to 2133MT/s
12 DIMM slots: 2GB/4GB/8GB/16GB/32GB
I/O slots 2 PCIe 3.0
Storage
SAS, SATA, nearline SAS, SSD
Multiple R430 chassis available:
• 10 x 2.5" hot-plug drives
• 8 x 2.5" hot-plug drives
• 4 x 3.5" hot-plug drives
• 4 x 3.5" cabled drives
RAID controllers Internal controllers: PERC S130 (SW RAID), PERC H330, PERC H730, PERC H730P
External HBAs (RAID): PERC H830HBA
Communications 4 x 1GbE LOM
Add-in network interface cards (NICs) and host bus adapters (HBAs)
Power supplies 450W, 550W PSU
Systems management
Systems management: IPMI 2.0 compliant;
Dell OpenManage Essentials; Dell OpenManage Mobile;
Dell OpenManage Power Center
Remote management: iDRAC8 with Lifecycle Controller,
iDRAC8 Express (default), iDRAC8 Enterprise (upgrade)
8GB vFlash media (upgrade), 16GB vFlash
media (upgrade)
Dell OpenManage Integrations:
• Dell OpenManage Integration Suite
for Microsoft® System Center
• Dell OpenManage Integration for
VMware® vCenter™
Dell OpenManage Connections:
• HP Operations Manager, IBM Tivoli® Netcool®
and CA Network and Systems Management
• Dell OpenManage Plug-in for Oracle®
Database Manager
Optional supported
hypervisors Citrix® XenServer, VMware vSphere ESXi™. Red Hat Enterprise Virtualization®
Operating systems
Microsoft Windows Server® 2008/2012 SP2, x86/x64 (x64 includes Hyper-V®)
Microsoft Windows Server 2008/2012 R2, x64 (includes Hyper-V)
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux
VMware vSphere
For more information on the specific versions and additions, visit Dell.com/OSsupport.
Rack support ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or
tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm.
OEM-ready
version available
From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you.
For more information, visit Dell.com/OEM.
Recommended
support
Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support
for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your
Dell representative today for more information. Availability and terms of Dell Services vary by region.
For more information, visit Dell.com/ServiceDescriptions.
