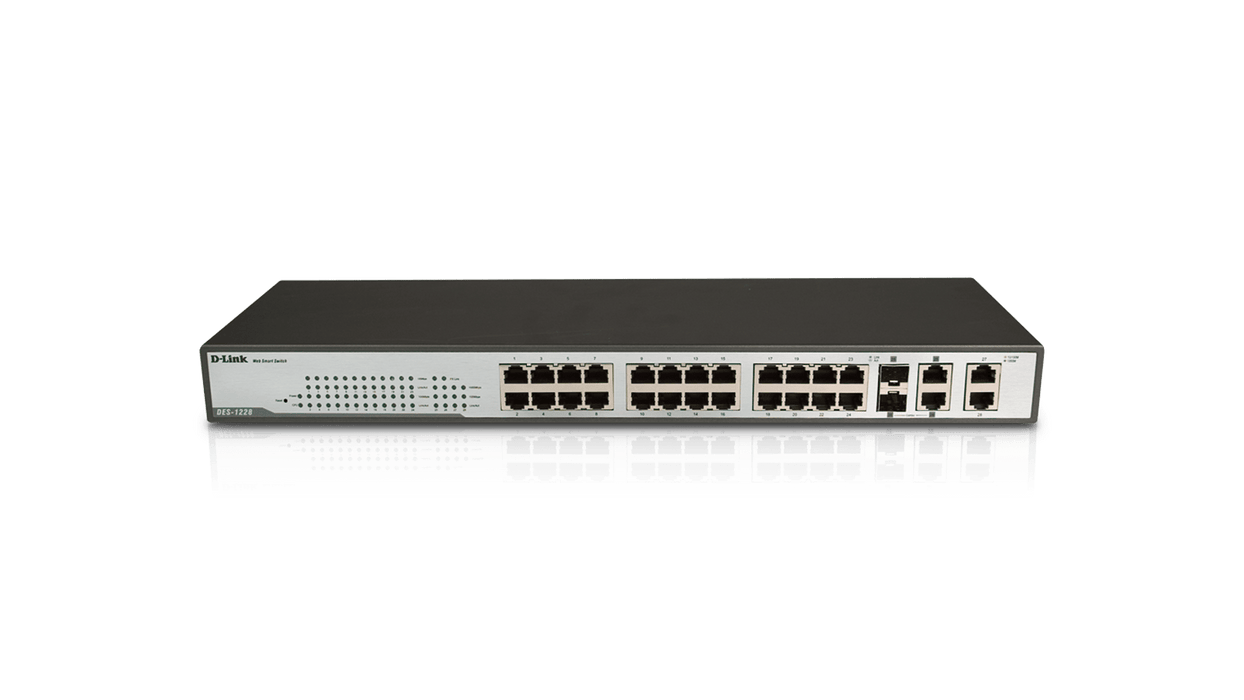

D-Link DES-1228 24 Port 10/100 Switch - Refurb

Refurbished D-Link Switch – This second hand D-Link DES-1228 24-Port Smart Fast Ethernet switch provides reliable Layer 2 switching performance for small to medium networks. With support for VLAN, QoS, link aggregation, and IGMP snooping, it offers enhanced traffic control and performance optimization in demanding business environments. The switch includes 2 combo 10/100/1000BASE-T/SFP uplink ports, allowing flexible deployment for fibre or copper backbone links. Ideal for cost-effective, rackmountable edge or distribution switching, this device offers excellent functionality with simple web-based management.

✔ Key Features & Benefits

✔ 24 x 10/100Mbps Fast Ethernet ports and 2 combo 10/100/1000BASE-T/SFP uplinks
✔ Supports VLANs, IGMP snooping, Spanning Tree, and static link aggregation
✔ Web-based GUI and SmartConsole Utility for simplified management
✔ IGMP snooping, port-based 802.1X access control, broadcast storm protection
✔ 802.1p and DSCP-based QoS with 4 queues per port
✔ Rackmount-ready, 1U height, fanless silent operation

✔ Ideal Uses

✔ Small to medium-sized business network aggregation
✔ Cost-effective solution for smart edge switching
✔ Fibre or copper uplinks in cabinet-based deployments
✔ Traffic-segmented VLAN setups for VoIP, surveillance, or guest networks

✔ Specifications

✔ Condition: Refurbished device with scratches and scuffs. Device has been extensively tested and is fully functional.
✔ Manufacturer & Model: D-Link DES-1228
✔ Form Factor: Rackmount 1U

✔ Ports & Standards:
✔ 24 x 10/100BASE-TX ports (RJ-45)
✔ 2 x Combo 10/100/1000BASE-T/SFP uplinks
✔ IEEE 802.3, 802.3u, 802.3ab, 802.3z compliant
✔ Auto MDI/MDIX & NWay Auto Negotiation

✔ Switching & Performance:
✔ Switching Capacity: 12.8 Gbps
✔ Forwarding Rate: 9.52 Mpps
✔ Store-and-Forward Transmission
✔ MAC Address Table: 8K
✔ Static MAC Entries: Up to 256
✔ Packet Buffer: 128KB

✔ Layer 2 & VLAN Features:
✔ IGMP Snooping v1/v2 (64 groups)
✔ 802.1D Spanning Tree Protocol
✔ 802.1Q VLAN Tagging – Up to 256 static VLANs
✔ Asymmetric & Management VLAN

✔ QoS & Security:
✔ 802.1p Priority Queues – 4 queues/port
✔ DSCP-based QoS
✔ 802.1X Port-Based Access Control
✔ D-Link Safeguard Engine
✔ Broadcast Storm Control
✔ Trusted Host & Cable Diagnostics

✔ Management Features:
✔ Web-based GUI
✔ SmartConsole Utility
✔ SNMP v1
✔ DHCP Client
✔ Firmware & config backup/restore via browser
✔ Event trapping for ports and fibre

✔ Physical & Power:
✔ Dimensions: 440 x 140 x 44 mm
✔ Weight: 2.08 kg
✔ Power Input: 100–240V AC, 50/60Hz
✔ Power Consumption: 18.35W
✔ Heat Dissipation: 62.75 BTU/hr
✔ Fanless (Silent Operation)

✔ Environmental:
✔ Operating Temp: 0°C to 40°C
✔ Storage Temp: -10°C to 70°C
✔ Operating Humidity: 10–90% (non-condensing)

✔ Compliance:
✔ FCC Class A, CE Class A, VCCI Class A, C-Tick

✔ Warranty:
✔ 3-Month Carry-In Warranty

✔ What’s in the Box?
✔ D-Link DES-1228 Switch
✔ Power Cable
