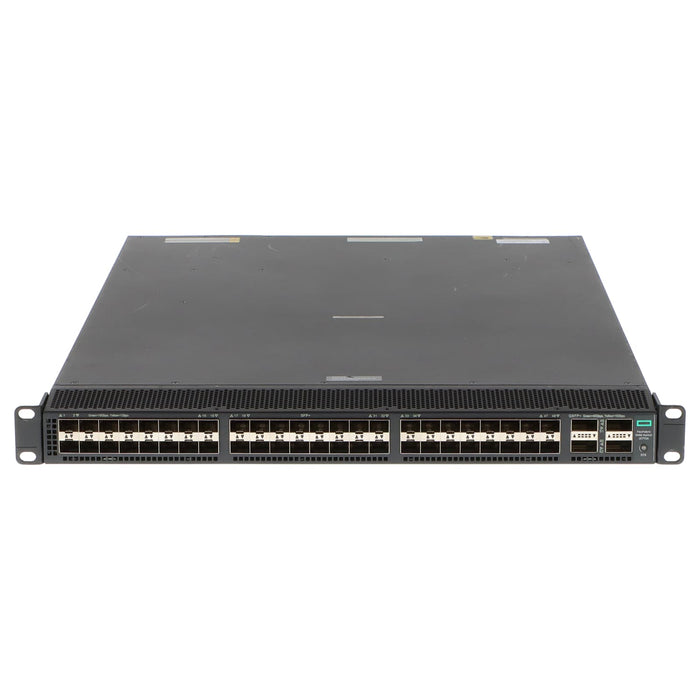

HP JC772A 5900AF 48XG 4QSFP+ Virtualization and Cloud Application SAN Switch – Refurb
The HP JC772A 5900AF is a high-performance 48-Port 10GbE SFP+ switch with 4 × 40GbE QSFP+ uplinks, purpose-built for enterprise and data center networks. Offering a switching capacity of 1280 Gbps and a forwarding rate of 952 Mpps, it delivers reliable, high-speed traffic handling for demanding applications.
With support for advanced Layer 3 routing protocols, VLANs, QoS, ACLs, and IPv6, this refurbished HP switch provides resilient connectivity and consistent performance for growing business networks. Designed for rack-mount installations, it is an ideal choice for core, distribution, or high-performance access layers.
✔ Key Features & Benefits
✔ High-Speed Connectivity – 48 × 10GbE SFP+ ports and 4 × 40GbE QSFP+ uplinks.
✔ Enterprise-Class Performance – 1280 Gbps switching capacity and 952 Mpps throughput.
✔ Advanced Layer 3 Routing – Supports OSPF, BGP, RIP, ECMP, and static routing.
✔ Secure & Reliable – Features ACLs, QoS, and full IPv6 support for modern networks.
✔ Data Center Ready – Built for performance-driven core or aggregation layers.
✔ Ideal Uses
✔ Enterprise data centers requiring high-bandwidth switching.
✔ Businesses running virtualization and cloud applications.
✔ Aggregation or distribution layers in high-performance networks.
✔ Secure and scalable Layer 3 networking environments.
✔ Specifications
✔ Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
✔ Brand: HP
✔ Model: JC772A – 5900AF-48XG-4QSFP+
✔ Device Type: Managed Layer 3 Switch
✔ Form Factor: Rack Mountable – 1U
Performance:
✔ Switching Capacity: 1280 Gbps
✔ Forwarding Rate: 952 Mpps
✔ Routing Table Entries: 16,000
✔ MAC Address Table: 128K Entries
Memory:
✔ 2GB SDRAM
✔ 512MB Flash
Ports & Interfaces:
✔ 48 × 10GbE SFP+
✔ 4 × 40GbE QSFP+
✔ 1 × RJ-45 Console
✔ 1 × RJ-45 Management
✔ 1 × USB
Protocols & Features:
✔ Routing: OSPF, BGP, RIP, ECMP, VRRP, Static Routing
✔ Features: VLANs, QoS, ACL, DHCP, IPv6, STP, RSTP, MSTP, Port Mirroring, Storm Control, WRED
✔ Security: SSH, ACLs, Secure Management
✔ Standards: IEEE 802.1d, 802.1q, 802.1p, 802.1w, 802.1s, 802.3ad (LACP), 802.3ae, 802.1ab (LLDP)
Power:
✔ Power Supply – Hot-Plug, Plug-In Module
✔ Input Voltage: 100–240V AC, 50/60 Hz
✔ Warranty: 3 Month Carry-in Warranty
✔ What’s in the Box: Switch, Power Cable
