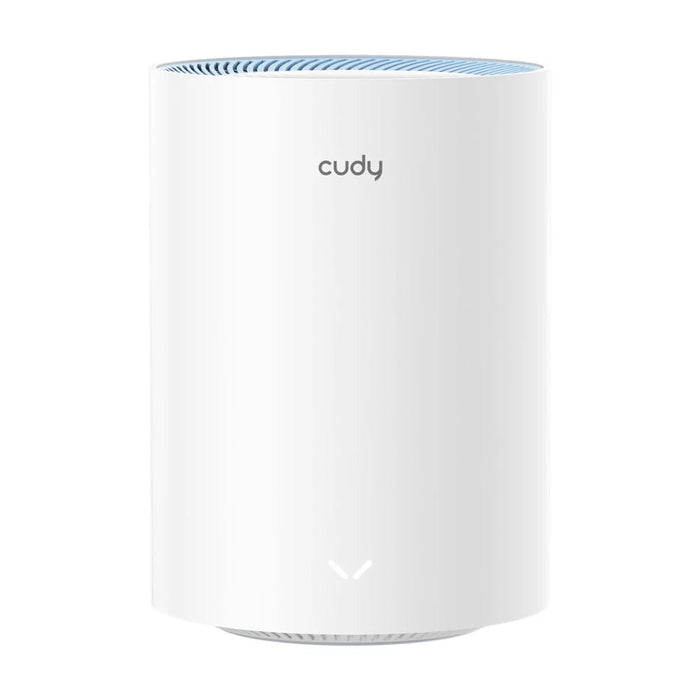

Cudy AC1200 M1200 Whole-Home Wi-Fi System – Demo

The Cudy AC1200 M1200 Whole-Home Wi-Fi System is designed to provide seamless and reliable wireless coverage across your home or office environment. With dual-band AC1200 speeds delivering up to 867 Mbps on 5GHz and 300 Mbps on 2.4GHz, it ensures stable connectivity for streaming, browsing, and multiple connected devices.

Powered by a 580 MHz single-core processor, this mesh-capable system offers efficient performance for everyday networking needs. Featuring internal antennas and beamforming technology, it enhances signal strength and coverage while reducing dead zones, making it ideal for modern households and small business environments.

✔ Key Features & Benefits

✔ AC1200 Dual-Band Wi-Fi – 867 Mbps (5GHz) + 300 Mbps (2.4GHz)
✔ Mesh Networking Capability – Seamless whole-home coverage
✔ Beamforming Technology – Improved signal strength and stability
✔ Dual Internal Antennas – Reliable wireless performance
✔ Efficient Processing – 580 MHz CPU
✔ Compact Desktop Design – Easy placement in any environment

✔ Ideal Uses

✔ Whole-home Wi-Fi coverage
✔ Small office or business networking
✔ Streaming, browsing, and smart home devices
✔ Eliminating Wi-Fi dead zones

✔ Specifications

✔ Condition: Demo unit – this device has been tested and is fully functional. It may show minor cosmetic signs of handling, but performance is not affected
✔ Brand: Cudy
✔ Model: M1200
✔ Wi-Fi Standard: AC1200

Processor
✔ 580 MHz Single-Core, MIPS24KEC

Memory & Storage

✔ 128MB DDR3 RAM

✔ 16MB Flash (NOR)

Wireless Performance
✔ 5GHz Speed: 867 Mbps
✔ 2.4GHz Speed: 300 Mbps
✔ Wi-Fi Streams: 2×2 MIMO (2.4GHz & 5GHz)
✔ Antennas: Internal
✔ Beamforming: Yes

Coverage & Range
✔ Maximum Range: Up to 170m (open environment)

Ports & Interfaces
✔ 2 × 10/100 Mbps RJ45 Ports
✔ WAN/LAN Auto Configuration (Mesh Mode Supported)

Buttons & Indicators
✔ WPS Button
✔ Reset Button
✔ LED Indicator

Power
✔ Power Input: 12V ⎓ 1A
✔ Max Power Consumption: 8W

Environmental
✔ Operating Temperature: 0°C to 40°C
✔ Storage Temperature: -40°C to 70°C
✔ Operating Humidity: 10% to 90% non-condensing

Physical
✔ Installation: Desktop
✔ Dimensions: 110 × 154.5 mm

✔ Warranty

✔ 3 Month Carry-in Warranty

✔ What’s in the Box

✔ Cudy AC1200 M1200 Wi-Fi Unit
✔ Power Adapter
✔ Ethernet Cable
