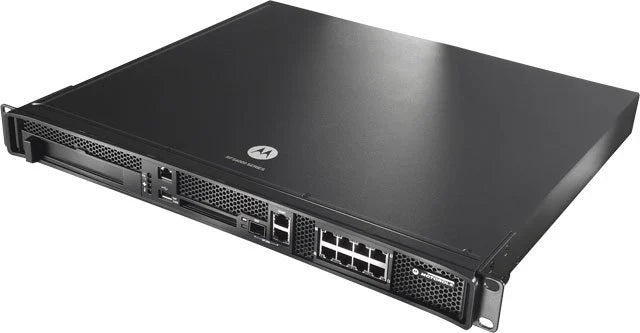

Motorola RFS-6010 8-Port Layer 2 Wireless LAN Controller – Refurb

The Motorola RFS-6010 is a high-performance wireless LAN controller designed to deliver secure, scalable, and reliable wireless connectivity for enterprise networks. With support for multiple wireless standards, advanced security features, and high AP capacity, it ensures efficient wireless management across large and distributed environments.

Ideal for businesses needing centralised control of wireless networks, it supports robust roaming capabilities, role-based firewalling, and quality of service for mission-critical applications.

✔ Key Features & Benefits

✔ Enterprise-Grade Wireless Management – Centralises control for up to 48 AP300 or 256 Adaptive APs per switch.
✔ High Port Density – Eight Gigabit Ethernet ports with PoE for flexible deployment.
✔ Advanced Security – Role-based firewall, IPSec VPN, wireless IDS/IPS, and multiple authentication methods.
✔ Scalable Architecture – Supports up to 20,000 users and 32 WLANs with clustering capabilities.
✔ Optimised Performance – Features QoS, multicast support, and intelligent RF management for reliable connectivity.

✔ Ideal Uses

✔ Enterprise Campuses – Manage large-scale wireless deployments with high security.
✔ Hospitals & Healthcare – Provide secure, high-availability Wi-Fi for staff and patients.
✔ Retail Chains – Centralise wireless management across multiple store locations.
✔ Education Facilities – Support high client density in classrooms and lecture halls.

✔ Specifications

✔ Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
✔ Product Type: Wireless LAN Controller
✔ Model: RFS-6010
✔ Fixed Ports:
  • 8 × 10/100/1000 Ethernet with PoE (29.7W per port)
  • 1 × 10/100/1000 Uplink (RJ45/SFP combo)
  • 1 × 10/100 Management Port
  • 1 × USB 2.0 Host
  • 1 × Express Card Slot
  • 1 × Serial Console Port (RJ45)
✔ Wireless Standards: 802.11 a/b/g/n
✔ Max APs per Switch: 48 AP300 / 256 Adaptive APs
✔ Max APs per Cluster: 576 AP300 / 3072 Adaptive APs
✔ User Capacity: 2,000 to 20,000
✔ WLAN Support: Up to 32 WLANs
✔ VLAN Support: VLAN mapping, ESSID to VLAN, MAC/Policy-based assignment
✔ MAC Address Table: 256K
✔ RF Management: DFS, TPC, Automatic Channel Selection, SMART RF
✔ Roaming: Opportunistic scanning, credential caching
✔ Firewall: Role-based Layer 2–7 Stateful Inspection
✔ Firewall Sessions: 100,000 per switch / 1,200,000 per cluster
✔ Authentication: PSK, 802.1x (TLS, TTLS, PEAP), Kerberos, RADIUS
✔ VPN: IPSec with DES, 3DES, AES (128/256); 1,024 tunnels per switch
✔ Wireless IDS/IPS: Rogue AP detection, DoS protection, client blacklisting
✔ QoS: 802.1p, DiffServ/TOS, TSPEC, WMM, SIP CAC
✔ Multicast Support: IGMP Snooping
✔ Management: SNMP v1/v2c/v3, Syslog, CLI (Telnet, SSH v2), HTTPS, TFTP
✔ Power Input: 90–264V AC, 50/60Hz
✔ Max Current: 6A @ 115V, 3A @ 230V
✔ Power Consumption: 665 BTU/hr
✔ Form Factor: 1U Rackmount
✔ Dimensions: 44.45 mm (H) × 440 mm (W) × 390.8 mm (D)
✔ Weight: 6.35 kg
✔ Operating Temperature: 0°C to 40°C
✔ Storage Temperature: –40°C to 70°C
✔ Operating Humidity: 5% to 85% (non-condensing)
✔ Certifications: EMC (EN 55022, FCC Part 15 Class B), Safety (UL 60950-1, EN 60950-1), Environmental (RoHS)
✔ Warranty: 3 Month Carry-in Warranty
✔ What’s in the Box: RFS-6010 Wireless LAN Controller
