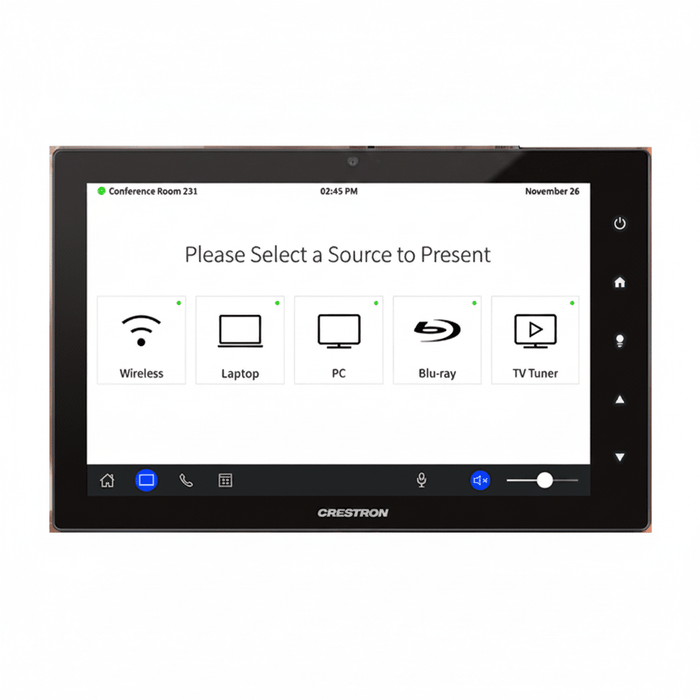

Crestron TSW-1060 10.1 Inch Touch Screen Control Panel – Refurb

The Crestron TSW-1060 is a professional 10.1-inch touchscreen control panel designed for advanced room control, scheduling, and AV automation in corporate, education, and smart building environments. It delivers a responsive multitouch interface with a high-resolution display, enabling intuitive control of meeting rooms, conferencing systems, lighting, and integrated building technologies.

Built on Crestron’s Smart Graphics and HTML5 platform, this touch panel supports a wide range of enterprise applications including room scheduling, video conferencing integration, and custom control interfaces. With PoE+ power and enterprise-grade connectivity, it is designed for reliable wall-mounted deployment in modern professional environments.

✔ Key Features & Benefits

✔ 10.1” WXGA Touch Display – Clear and responsive control interface
✔ 5-Point Multitouch – Smooth and intuitive user interaction
✔ Crestron Smart Graphics Platform – Advanced UI and system integration
✔ PoE+ Powered – Single cable power and network connectivity
✔ Built-in Camera & Microphone – Supports conferencing and intercom functions
✔ Enterprise Control System – Ideal for AV and building automation

✔ Ideal Uses

✔ Conference room control systems
✔ Smart building automation
✔ Room scheduling and management
✔ Corporate AV integration
✔ Video conferencing control panels

✔ Specifications

✔ Condition: Refurbished device with minor signs of previous use. Fully tested and 100% functional.
✔ Brand: Crestron
✔ Model: TSW-1060
✔ Display: 10.1" TFT LCD (1280 × 800 WXGA)
✔ Aspect Ratio: 16:10
✔ Brightness: 400 nits
✔ Touch Type: Projected capacitive (5-point multitouch)

Performance & System
✔ 2GB DDR3L RAM
✔ 4GB eMMC System Storage
✔ 4GB microSD Firmware Storage

Connectivity
✔ 1 × RJ45 Ethernet (PoE+)
✔ 1 × USB 2.0 Host Port

Power
✔ IEEE 802.3at PoE+ Powered Device

Audio & Camera
✔ Built-in microphone and speakers
✔ Integrated 5MP camera

Construction
✔ Edge-to-edge glass design
✔ Wall/flush mount compatible (no accessories included)

Dimensions
✔ Height: 168 mm
✔ Width: 260 mm
✔ Depth: 39 mm

Environmental
✔ Operating Temperature: 0°C to 45°C
✔ Humidity: 10% to 90% non-condensing

✔ Warranty

✔ 6 Month Carry-In Warranty

✔ What’s in the Box

✔ Crestron TSW-1060 Touch Screen Panel only
