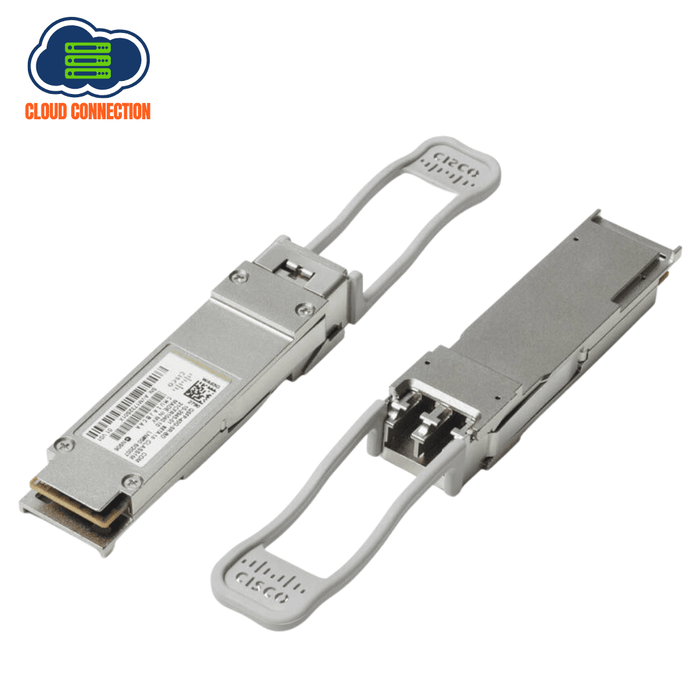

Cisco QSFP-40G-SR-BD 40GBASE-SR Bi-Directional QSFP Module – Refurb

Cisco QSFP-40G-SR-BD 40GBASE-SR Bi-Directional QSFP Module – Refurb

Save R 3,750.00 Save R 3,750.00
R 5,000.00
R 5,000.00 - R 5,000.00
R 5,000.00
R 1,250.00
R 1,250.00 - R 1,250.00
R 1,250.00
Make an offer
Make an offer
Make an offer
We currently have 1 in stock.
by Cisco

The Cisco QSFP-40G-SR-BD is a refurbished 40GBASE-SR Bi-Directional QSFP optical transceiver designed for duplex multimode fiber connections. Using a unique bidirectional technology over a single pair of fibers, it transmits and receives simultaneously on the same strand, providing high-speed 40Gbps connectivity without additional fiber runs.

Operating across wavelengths from 832 to 918nm, this hot-swappable module supports cable distances of up to 30m on OM2, 100m on OM3, and 150m on OM4 fiber. It is fully compliant with IEEE 802.3 standards and QSFP+ MSA specifications, making it ideal for high-density data center deployments and enterprise backbone networks.

✔ Key Features & Benefits

✔ 40GBASE-SR BiDi technology allows 40Gbps over a single duplex MMF pair
✔ Supports up to 150m over OM4, 100m over OM3, and 30m over OM2 fiber
✔ Operates over wavelengths from 832nm to 918nm
✔ Low power consumption of 3.5W for energy-efficient operation
✔ QSFP+ hot-swappable form factor for quick deployment and replacement

✔ Ideal Uses

✔ Data center backbone and aggregation layer links
✔ High-speed connections between switches and routers
✔ Upgrading existing MMF infrastructure to 40Gbps without extra fiber installation
✔ High-density rack environments requiring short-to-medium range connectivity

✔ Specifications

✔ Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
✔ Brand / Model: Cisco QSFP-40G-SR-BD=
✔ Type: 40GBASE-SR Bi-Directional, Duplex MMF
✔ Form Factor: QSFP+
✔ Dimensions (W x H x D): 13.5 x 18.4 x 72.4 mm
✔ Wavelength Range: 832 – 918nm
✔ Cable Type: MMF
✔ Core Size: 50µm
✔ Modal Bandwidth: OM2 – 500 MHz·km / OM3 – 2000 MHz·km / OM4 – 4700 MHz·km
✔ Cable Distances: 30m (OM2), 100m (OM3), 150m (OM4)
✔ Power Consumption: 3.5W
✔ Pull Tab Color: Gray
✔ Transmit Power (per lane): Max +5 dBm, Min -4 dBm
✔ Receive Power (per lane): Max +5.0 dBm, Min -6.0 dBm
✔ Operating Temperature: +10°C to +70°C
✔ Storage Temperature: -40°C to +85°C
✔ Standards Compliance: GR-20-CORE, GR-326-CORE, GR-1435-CORE, IEEE 802.3ba (-SR4, -LR4), IEEE 802.3ae (-CSR4), QSFP+ MSA SFF-8436, SFP+ MSA SFF-8431/-8461, RoHS 6
✔ Safety Compliance: UL E116441 Compliant, ELV Compliant
✔ Warranty: 1 Month Carry-in Warranty
✔ What's in the Box: 1 x Cisco QSFP-40G-SR-BD Optical Transceiver
