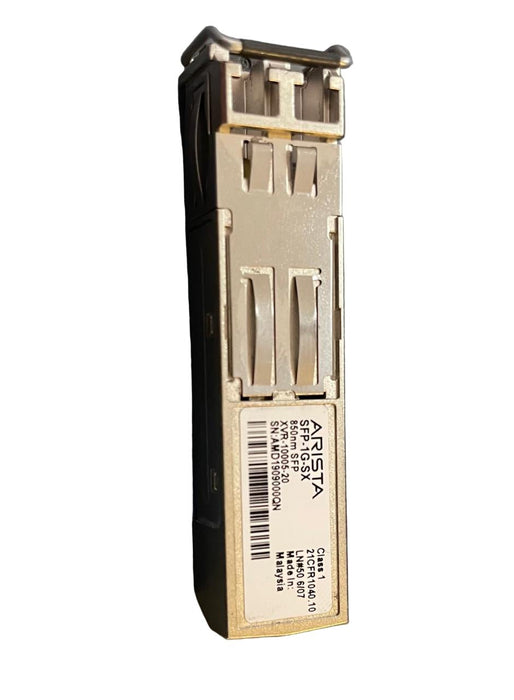

Arista SFP-1G-SX XVR-10005-20 850nm Transceiver Module – Refurb

The Arista SFP-1G-SX XVR-10005-20 transceiver provides a cost-effective and reliable solution for Gigabit Ethernet over multimode fiber. Designed to meet IEEE 802.3z standards, it delivers up to 1.25Gbps data rates and supports transmission distances of up to 550 meters depending on fiber type.

Built with DDM/DOM support and low power consumption, this module ensures dependable network performance in enterprise and data center environments. Fully compliant with industry MSA specifications, it offers seamless compatibility with Arista switches and other networking equipment.

✔ Key Features & Benefits

✔ Gigabit Ethernet over MMF – Provides reliable 1.25Gbps connectivity for short-range fiber applications.
✔ Up to 550m Transmission Distance – Supports various multimode fibers including OM2, OM1, and FDDI MMF.
✔ DDM/DOM Monitoring – Enables real-time diagnostics of optical parameters for proactive maintenance.
✔ Compact SFP Form Factor – Easily integrates into switches and routers for flexible port expansion.
✔ Low Power Consumption (≤0.8W) – Efficient for high-density networking deployments.

✔ Ideal Uses

✔ Perfect for enterprise networks requiring short-range Gigabit fiber connectivity.
✔ Suitable for data centers needing cost-effective and scalable optical connections.
✔ Ideal for campus environments linking aggregation and access switches.
✔ Reliable option for telecom and carrier-grade networking equipment.

✔ Specifications

✔ Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
✔ Brand: Arista Networks (Compatible)
✔ Model / Part Number:  SFP-1G-SX
✔ Form Factor: SFP
✔ Max Data Rate: 1.25 Gbps
✔ Standards Compliance: IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i)
✔ Wavelength: 850nm
✔ Transmission Distance: Up to 550m (OM2 MMF) / 275m (OM1 MMF) / 220m (FDDI MMF)
✔ Connector: Duplex LC
✔ Media: MMF (Multi-Mode Fiber)
✔ Transmitter Type: VCSEL
✔ Receiver Type: PIN
✔ DDM/DOM: Supported
✔ TX Power: -9.5 to -3 dBm
✔ Receiver Sensitivity: < -17 dBm
✔ Receiver Overload: -3 dBm
✔ Extinction Ratio: >9 dB
✔ Power Consumption: ≤0.8W
✔ Operating Temperature: 0°C to 70°C
✔ MTBF: 2,457,002 hours
✔ Protocols: IEEE 802.3z, SFF-8472, SFP MSA
✔ Weight: 16 g
✔ Warranty: 3 Month Carry-in Warranty
✔ In the Box: 1 x Arista  SFP-1G-SX XVR-10005-20  Transceiver Module
