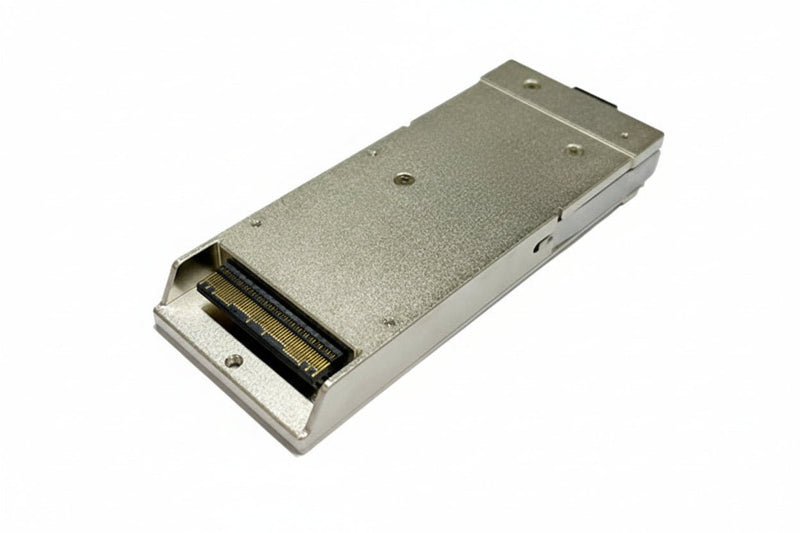

Huawei TN13CTCFP2A29 200G CFP2 Coherent Optical Transceiver Module – Open Box

The Huawei TN13CTCFP2A29 is a 200G CFP2 coherent optical transceiver engineered for high-capacity transmission across enterprise and carrier-grade optical networks. Designed for use in advanced WDM and OTN systems, it supports flexible modulation formats such as 200G e16QAM and 100G QPSK, enabling reliable long-distance transmission up to 80 km.

This Open Box module has been opened for inspection or display but remains unused and in pristine condition. It delivers outstanding optical performance through SDFEC2 forward error correction, tunable wavelengths across the extended C-band, and full Flexgrid support — ensuring scalability, precision, and efficiency in demanding optical environments.

✔ Key Features & Benefits

✔ 200G Coherent CFP2 Module – Offers high-capacity optical transmission with advanced coherent detection for superior performance.
✔ Supports 200G e16QAM / 100G QPSK – Enables flexible modulation for varying network applications and distances.
✔ Extended 80 km Reach – Provides robust long-haul connectivity for enterprise and carrier backbone systems.
✔ SDFEC2 Forward Error Correction – Enhances signal reliability and reduces bit error rates across fiber spans.
✔ Tunable Wavelengths (Extended C-Band) – Allows adaptable frequency planning and efficient bandwidth utilization.
✔ Flexgrid Compatible – Supports modern DWDM architectures with dynamic channel spacing.
✔ Low Power Consumption (24W) – Optimized for energy-efficient network operation.
✔ Open Box Condition – Fully functional, unused device that has been opened for inspection only.

✔ Ideal Uses

✔ Ideal for 100G/200G DWDM and OTN optical transport networks.
✔ Suitable for long-haul, metro, and enterprise WDM backbone systems.
✔ Perfect for data center interconnect and multi-terabit optical transmission.
✔ Excellent for scalable, tunable, high-speed optical environments.

✔ Specifications

✔ Condition: Open Box – Item opened for inspection or display but unused and in 100% working condition.
✔ Brand: Huawei
✔ Model: TN13CTCFP2A29
✔ Part Number: 03033KXA
✔ Product Type: 200G CFP2 Coherent Optical Transceiver
✔ Transmission Distance: Up to 80 km
✔ Modulation Formats: 200G e16QAM / 100G QPSK / flexible rate
✔ Error Correction: SDFEC2
✔ Wavelength Range: Extended C-Band, Tunable
✔ Channel Spacing: Flexgrid Compatible
✔ Optical Output Power: -10 dBm to -1 dBm
✔ Receiver Sensitivity: -18 dBm
✔ Power Consumption: 24 W
✔ Form Factor: CFP2
✔ Net Dimensions (D × W × H): 107 × 42 × 15 mm
✔ Product Line: Transmission & Access
✔ Sub Product Family: Enterprise Network WDM
✔ Warranty: 12 Month Carry-in Warranty
✔ What’s in the Box: Optical Transceiver Module, 2 x Mounting ear, Countersunk head screw
