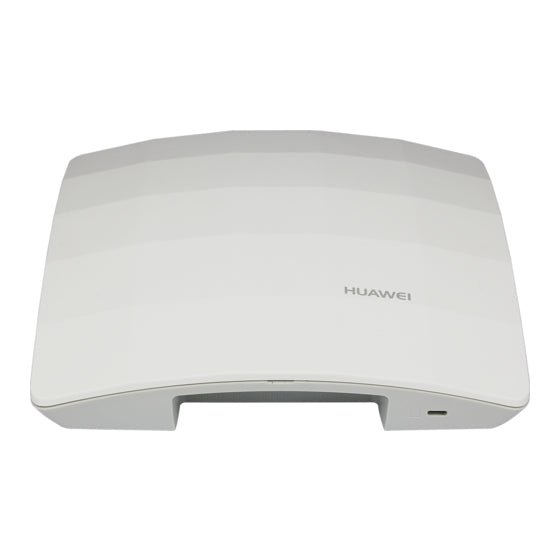

Huawei AP6010DN-AGN Wireless LAN Access Point – Open Box

The Huawei AP6010DN-AGN is a high-performance wireless LAN access point designed for small to medium business and enterprise environments. Featuring dual-band 2.4 GHz and 5 GHz operation with built-in antennas, it supports up to 128 concurrent users, delivering stable, high-speed Wi-Fi coverage. Its compact and durable design (IP31-rated) ensures reliable operation in indoor or semi-exposed locations.

With flexible power options including DC 12V or -48V POE input (IEEE 802.3af/at compliant), the AP6010DN-AGN is an energy-efficient and versatile solution for dense wireless networks. Advanced modulation, channel management, and receiver sensitivity enhance network performance and reliability in diverse environments.

Key Features & Benefits

✔ Open Box Huawei AP6010DN-AGN Wireless LAN Access Point
✔ Dual-band 2.4 GHz (4 dBi) and 5 GHz (5 dBi) built-in antennas
✔ Supports up to 128 concurrent users
✔ Flexible power input: DC 12V ±10% or POE (-48V, IEEE 802.3af/at)
✔ Maximum transmit power up to 20 dBm (adjustable)
✔ Compact, lightweight (180 × 180 × 50 mm; 0.4 kg) and IP31-rated
✔ Supports multiple modulation coding schemes (MCS0–MCS15) for optimized throughput
✔ Advanced receiver sensitivity for reliable data transmission

Ideal Uses

✔ Small to medium business wireless LAN deployments
✔ Offices, retail spaces, or classrooms requiring reliable Wi-Fi
✔ High-density user environments with multiple concurrent devices
✔ Wireless coverage for both 2.4 GHz and 5 GHz bands

Specifications

✔ Condition: Open Box, fully tested and functional
✔ Manufacturer: Huawei
✔ Model: AP6010DN-AGN
✔ Product Type: Wireless LAN Access Point

Physical & Dimensions
✔ Dimensions (H × W × D): 50 × 180 × 180 mm
✔ Weight: 0.4 kg

Memory & Processing
✔ System Memory: 128 MB DDR2
✔ Flash Memory: 32 MB

Power
✔ Input Voltage: DC 12V ±10%, POE (-48V)
✔ Maximum Power Consumption: 10.2 W
✔ POE Compliance: IEEE 802.3af / 802.3at

Wireless & Radio
✔ Maximum Users: 128
✔ Antenna Type: Built-in
✔ Antenna Gain: 2.4 GHz = 4 dBi; 5 GHz = 5 dBi
✔ Maximum Transmit Power: 20 dBm
✔ Receiver Sensitivity: Supports 802.11b/g/n/a, MCS0–MCS15
✔ Maximum Non-overlapping Channels: 2.4 GHz = up to 3 (20 MHz), 5 GHz = up to 5 (20 MHz)

Environment
✔ Operating Temperature: -10°C to 50°C
✔ Storage Temperature: -40°C to 70°C
✔ Humidity: 5%–95% non-condensing
✔ Waterproof Grade: IP31
✔ Altitude Range: -60 m to 5,000 m

Warranty

✔ 12-Month Manufacturer Warranty

What’s in the Box

✔ Huawei AP6010DN-AGN Wireless LAN Access Point – Open Box
