Dell WD22TB4 Thunderbolt Laptop Computer Dock - New

The Dell WD22TB4 Thunderbolt Dock is a high-performance docking solution engineered to expand the functionality of Thunderbolt-enabled laptops with powerful display support, seamless peripheral integration, and up to 130W of power delivery for Dell systems. Supporting up to four 4K displays at 60Hz, the WD22TB4 is ideal for professionals requiring multitasking power, rapid connectivity, and a clean workstation setup.

Key Features & Benefits:
✔ Dual Thunderbolt 4 Ports – Lightning-fast data transfer and support for high-resolution displays.
✔ Display Versatility – Supports up to four 4K displays or one 5K display at 60Hz.
✔ 130W Power Delivery – Full-speed laptop charging for Dell systems (90W for non-Dell systems).
✔ Integrated Video Outputs – Includes DisplayPort, HDMI, and USB-C DisplayPort Alt Mode.
✔ Extensive Connectivity – USB-A, USB-C, Ethernet, and PowerShare support for accessories.
✔ Enterprise-Grade Security – Noble Wedge and Kensington security slot support for safe deployments.

Ideal Uses:
✔ Executive Workstations – Supports multiple 4K monitors, fast charging, and professional accessories.
✔ IT Management & Support – Universal compatibility across Windows and Ubuntu.
✔ Creative & Development – Ideal for 5K editing workflows and GPU-driven development stacks.
✔ University & Training Labs – Simplifies connection to shared displays, power, and peripherals.

Specifications

Condition:
✔ New device with no signs of previous use. Device has been extensively tested and is 100% functional.

Manufacturer & Model:
✔ Dell WD22TB4 Thunderbolt Docking Station

Form Factor:
✔ Portable Thunderbolt Dock

Power Delivery:
✔ Up to 130W to Dell systems
✔ Up to 90W to non-Dell systems
✔ 180W Dell Power Adapter included

Video Output Support:
✔ Max Resolution (Single Display): 5K @ 60Hz
✔ Max Resolution (Quad Display): 4K @ 60Hz
✔ Display Standards: DisplayPort 1.4, HDMI 2.0

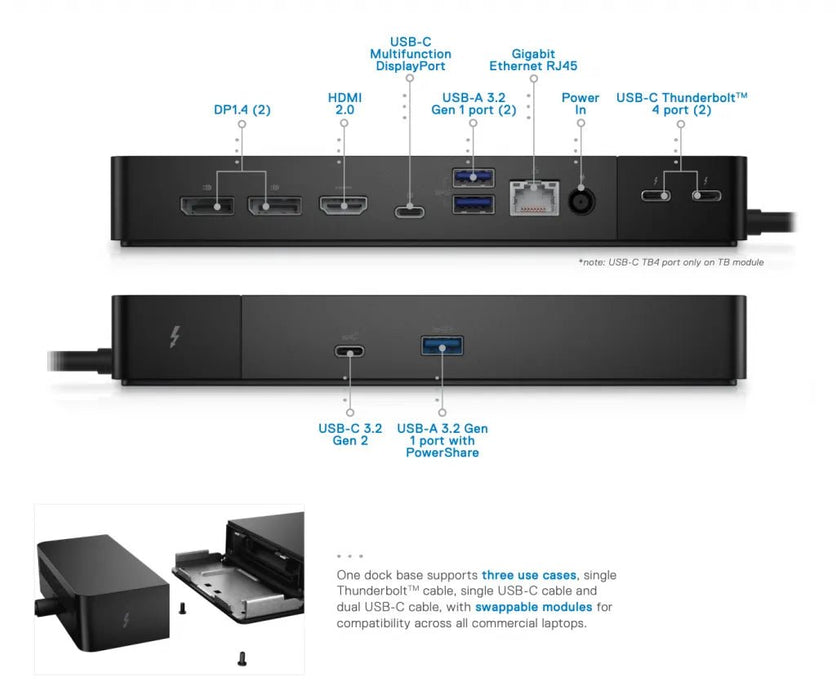

Ports & Interfaces:
✔ 2 x Thunderbolt 4
✔ 2 x DisplayPort 1.4
✔ 1 x HDMI 2.0
✔ 1 x USB-C 3.2 Gen 2 / DisplayPort 1.4
✔ 1 x USB-C 3.2 Gen 2
✔ 2 x USB-A 3.2 Gen 1
✔ 1 x USB-A 3.2 Gen 1 with PowerShare
✔ 1 x RJ-45 Gigabit Ethernet

Networking:
✔ 10/100/1000 Mbps Ethernet
✔ PXE Boot, Wake-on-LAN support

Operating System Support:
✔ Windows 10
✔ Windows 11
✔ Ubuntu 20.04 or later

Security & Compliance:
✔ Noble Wedge Security Slot
✔ Kensington Lock Slot
✔ DisplayPort 1.4 Compliant

Power Adapter:
✔ 180W AC Adapter (Included)
✔ Voltage: 120V/230V, 50/60Hz

Dimensions & Weight:
✔ Width: 206 mm (8.1 in)
✔ Depth: 89 mm (3.5 in)
✔ Height: 28 mm (1.1 in)
✔ Weight: 0.65 kg (22.93 oz)

Warranty:
✔ Dell Basic Support – Valid Until 31 August 2025

What’s in the Box?
✔ Dell WD22TB4 Docking Station
✔ Dell 180W AC Power Adapter
✔ Power Cable

✅ Expand Your Workspace – Power up multiple monitors and peripherals with one clean dock.
✅ Single Cable Solution – USB-C Thunderbolt handles video, data, and power simultaneously.
✅ Perfect for Hot Desking – Universal compatibility and simple plug-and-play setup.
✅ Enterprise Ready – Meets business security standards with integrated lock support.
